M409.050.22.D32.1.02.B

Material number M40905022D32102B

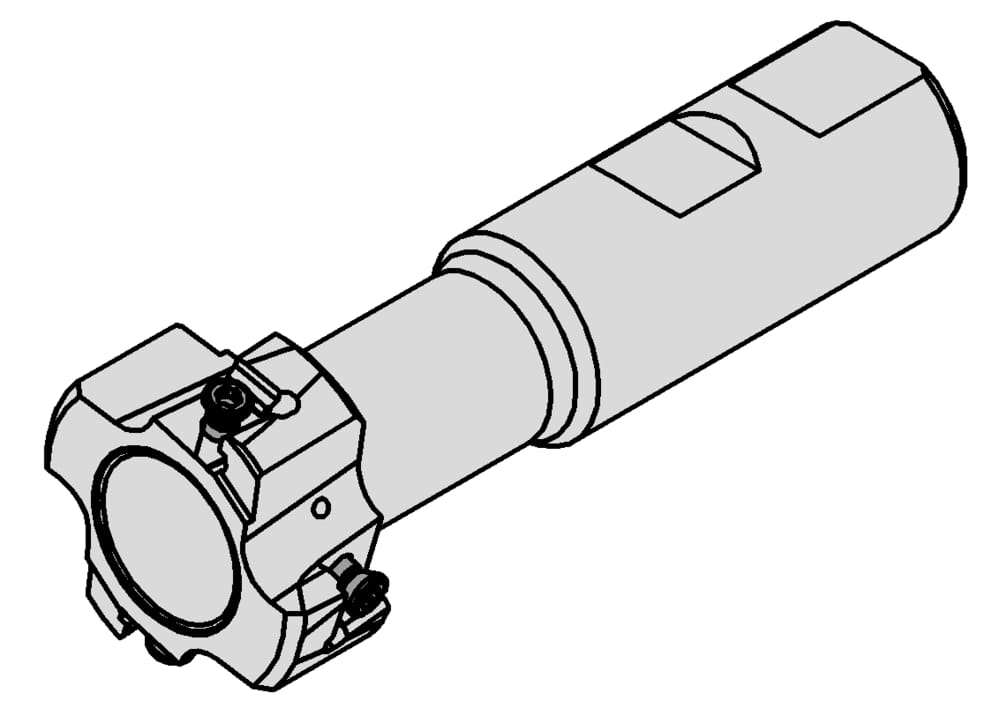

HORN T-Nutenfräser M409.050.22.D32.1.02.B for Milling

Working length, Neck length, Extension length (l2)

2.323 ˝

59 mm

tool-application

rotating

Size of groove (a)

1.059 ˝

26.9 mm

Maximum milling depth/ depth of groove (w)

0.866 ˝

22 mm

Total length insert (l1)

4.921 ˝

125 mm

Neck diameter (d1)

1.039 ˝

26.4 mm

Shank diameter (d)

1.26 ˝

32 mm

Katalog_CCTWS

40900R;40900L

Cutting diameter (Ds)

1.969 ˝

50 mm
