M332.ST16.01B
Material number M332ST1601B

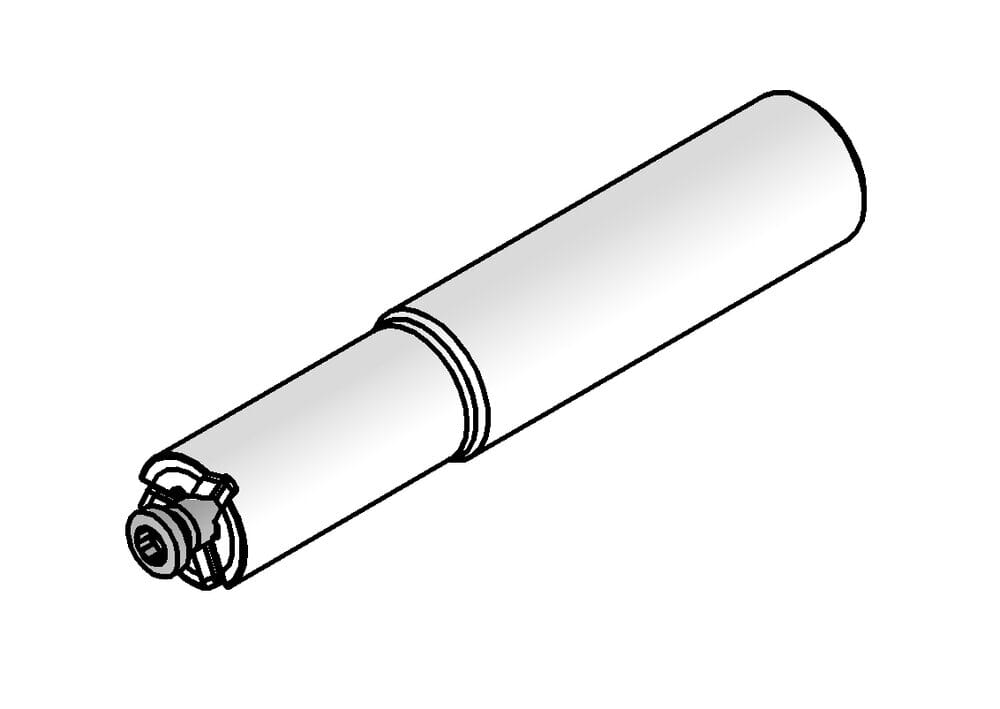

HORN Milling cutter shank M332.ST16.01B for Milling

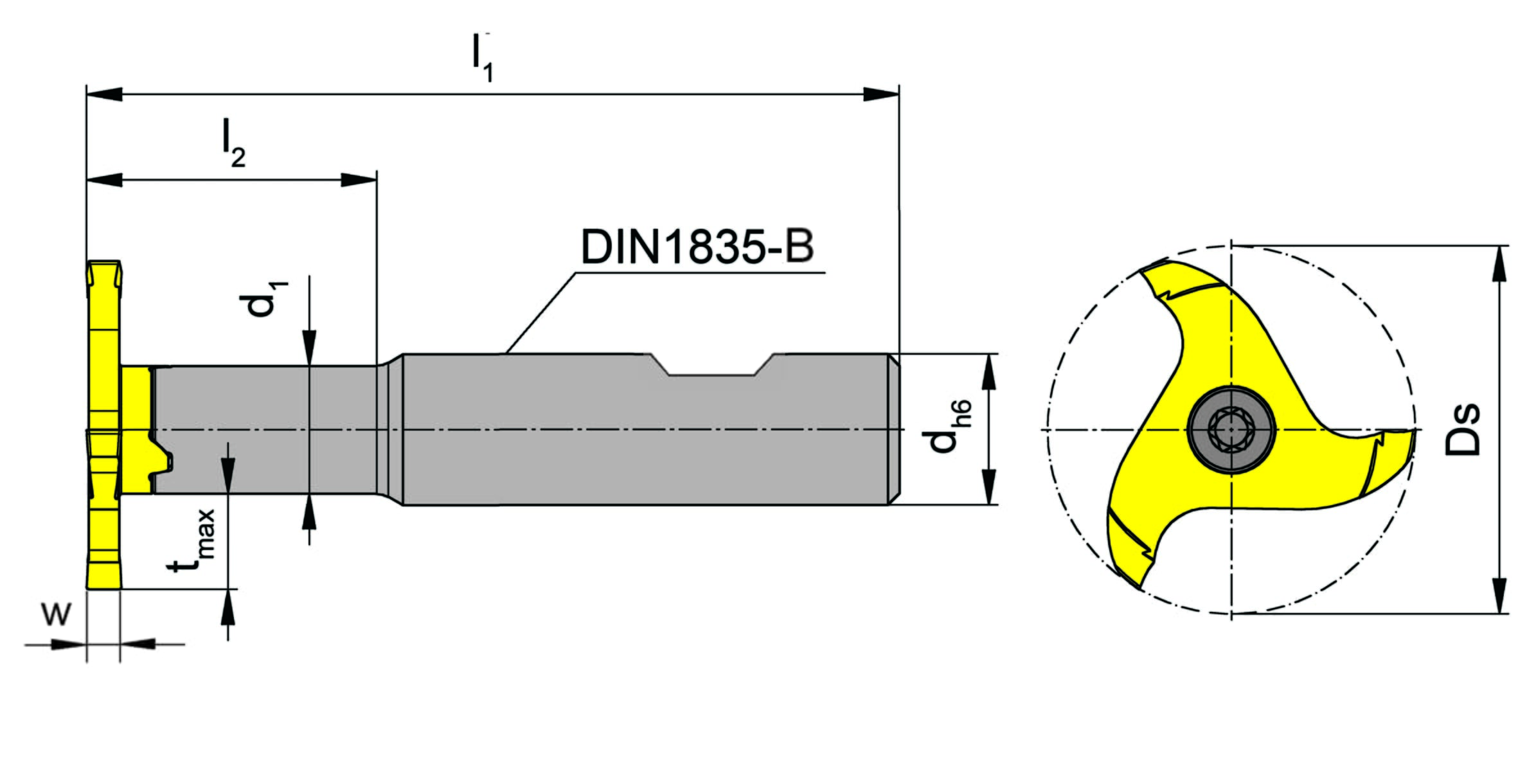

Total length insert (l1)
3.543 ˝
90 mm
tool-application
rotating
Working length, Neck length, Extension length (l2)
1.417 ˝
36 mm
Neck diameter (d1)
0.563 ˝
14.3 mm
Shank diameter (d)
0.63 ˝
16 mm
Katalog_CCTWS
332143R
| Downloads | |
|---|---|
| M332_ST16_01B-ISO.XML | Download |
| M332_ST16_01B-DXF.DXF | Download |
| M332_ST16_01B-STP.STP | Download |
| M332_ST16_01B-DIN.XML | Download |
| Download all files | |
