M328.0020.03B
Material number M328002003B

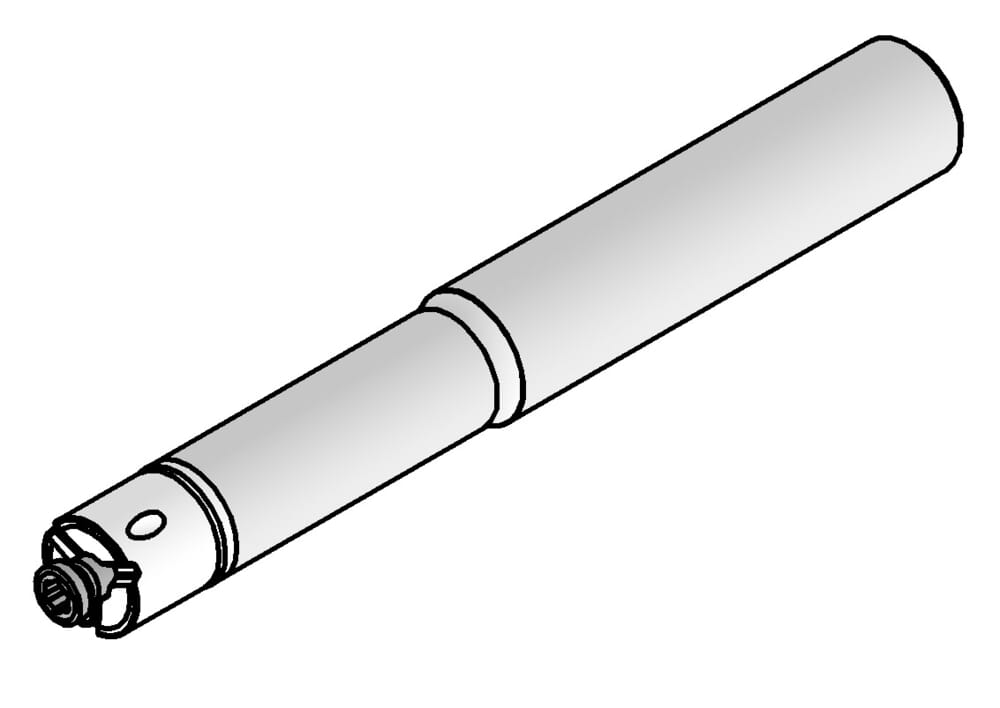

HORN Toolholders M328.0020.03B for Milling
Total length insert (l1)
6.299 ˝
160 mm
tool-application
rotating
Working length, Neck length, Extension length (l2)
3.346 ˝
85 mm
Neck diameter (d1)
0.563 ˝
14.3 mm
Shank diameter (d)
0.787 ˝
20 mm
Katalog_CCTWS
328143R
| Downloads | |
|---|---|
| M328_0020_03B-DXF.DXF | Download |
| M328_0020_03B-STP.STP | Download |
| M328_0020_03B-ISO.XML | Download |
| M328_0020_03B-DIN.XML | Download |
| Download all files | |
