M313.1620.02A
Material number M313162002A

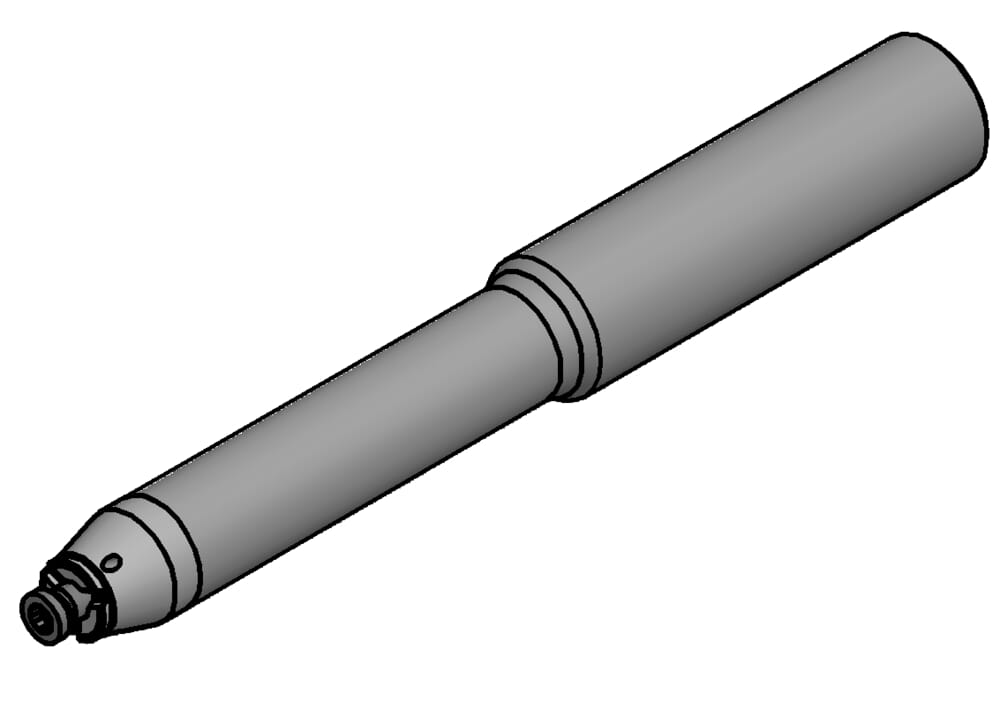

HORN Toolholder M313.1620.02A for Milling
Total length insert (l1)
5.118 ˝
130 mm
tool-application
rotating
Working length, Neck length, Extension length (l2)
2.559 ˝
65 mm
Neck diameter (d1)
0.63 ˝
16 mm
Shank diameter (d)
0.787 ˝
20 mm
Katalog_CCTWS
313113R;313113L
| Downloads | |
|---|---|
| M313_1620_02A-STP.STP | Download |
| M313_1620_02A-ISO.XML | Download |
| M313_1620_02A-DIN.XML | Download |
| M313_1620_02A-DXF.DXF | Download |
| Download all files | |
