M311.1316.03B
Material number M311131603B

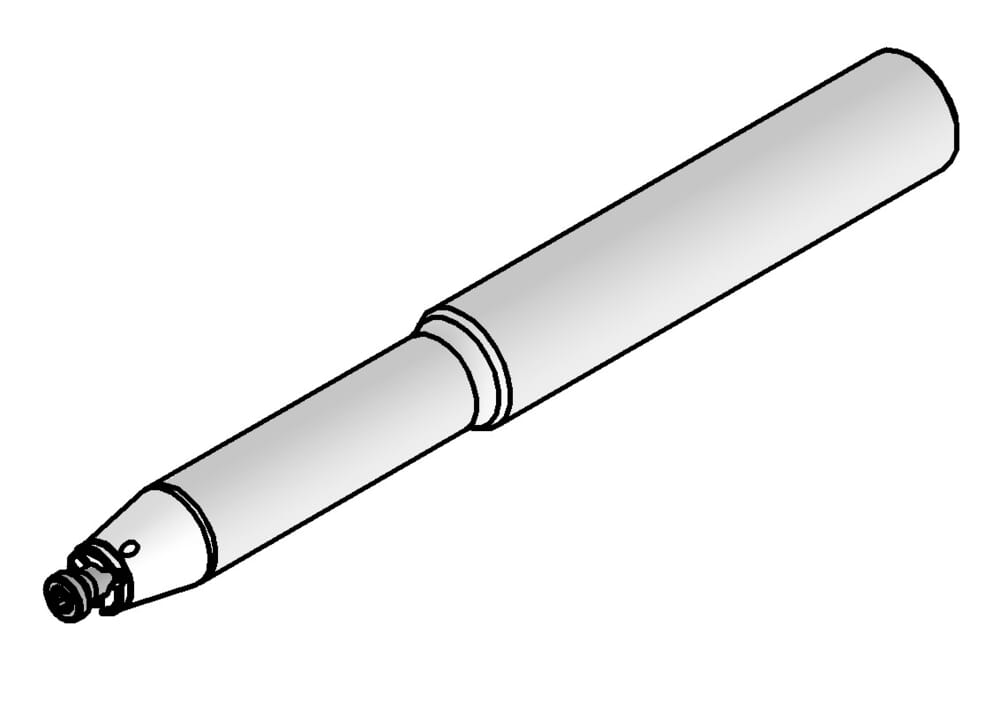

HORN Toolholder M311.1316.03B for Milling
Total length insert (l1)
5.709 ˝
145 mm
tool-application
rotating
Working length, Neck length, Extension length (l2)
2.52 ˝
64 mm
Neck diameter (d1)
0.512 ˝
13 mm
Shank diameter (d)
0.63 ˝
16 mm
Katalog_CCTWS
311090R
| Downloads | |
|---|---|
| M311_1316_03B-DXF.DXF | Download |
| M311_1316_03B-STP.STP | Download |
| M311_1316_03B-ISO.XML | Download |
| M311_1316_03B-DIN.XML | Download |
| Download all files | |
