M101.0200.40.40
Material number M10102004040

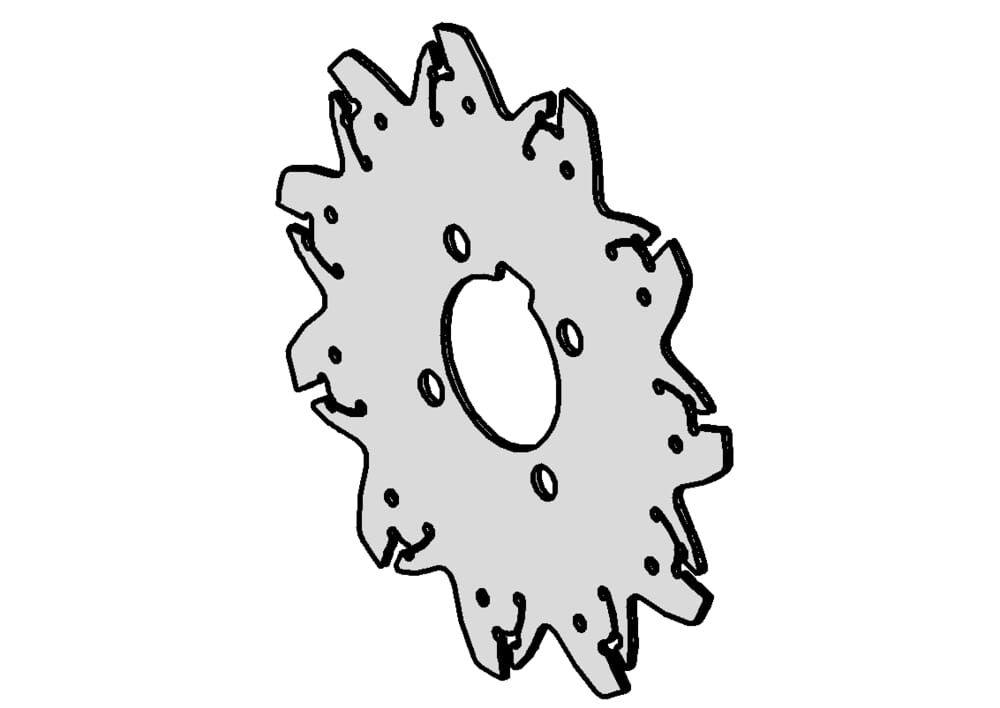

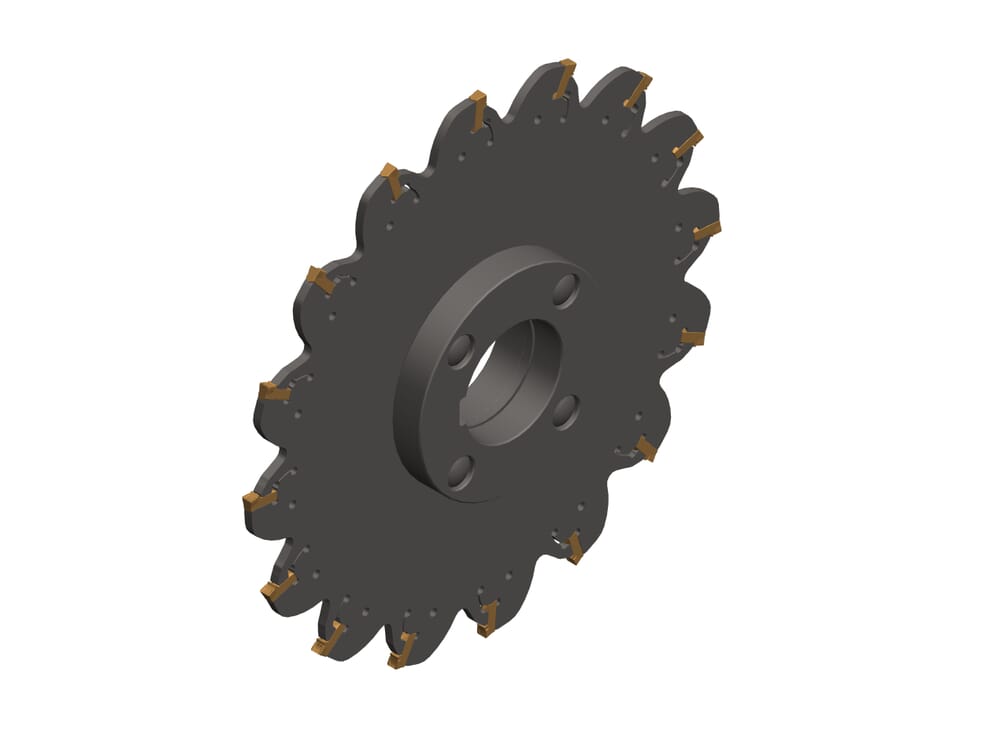

HORN Disk milling cutter M101.0200.40.40 for Milling
milling-body-wide-met
0.126 ˝
3.2 mm
Mounting hole diameter (d2)
1.575 ˝
40 mm
Cutting width maximum (Schneidbreite)
0.181 ˝
4.6 mm
Maximum milling depth/ depth of groove (tmax)
2.323 ˝
59 mm
Total width with drive rings (b2)
1.071 ˝
27.2 mm
Diameter of driver ring (d4)
3.15 ˝
80 mm
Diameter for through hole (d6)
0.443 ˝
11.25 mm
Cutting width minimum (Schneidbreite)
0.15 ˝
3.8 mm
Wide disc cutter without cutting insert (b)
0.126 ˝
3.2 mm
tool-application
rotating
us-cutting
No
Bore diameter miller body (d5)
2.48 ˝
63 mm
Cutting diameter (Ds)
7.874 ˝
200 mm
Katalog_CCTWS
10140
| Downloads | |
|---|---|
| M101_0200_40_40-DXF.DXF | Download |
| M101_0200_40_40-ISO.XML | Download |
| M101_0200_40_40-STP.STP | Download |
| M101_0200_40_40-DIN.XML | Download |
| Download all files | |
