M101.0100.A22.16
Material number M1010100A2216

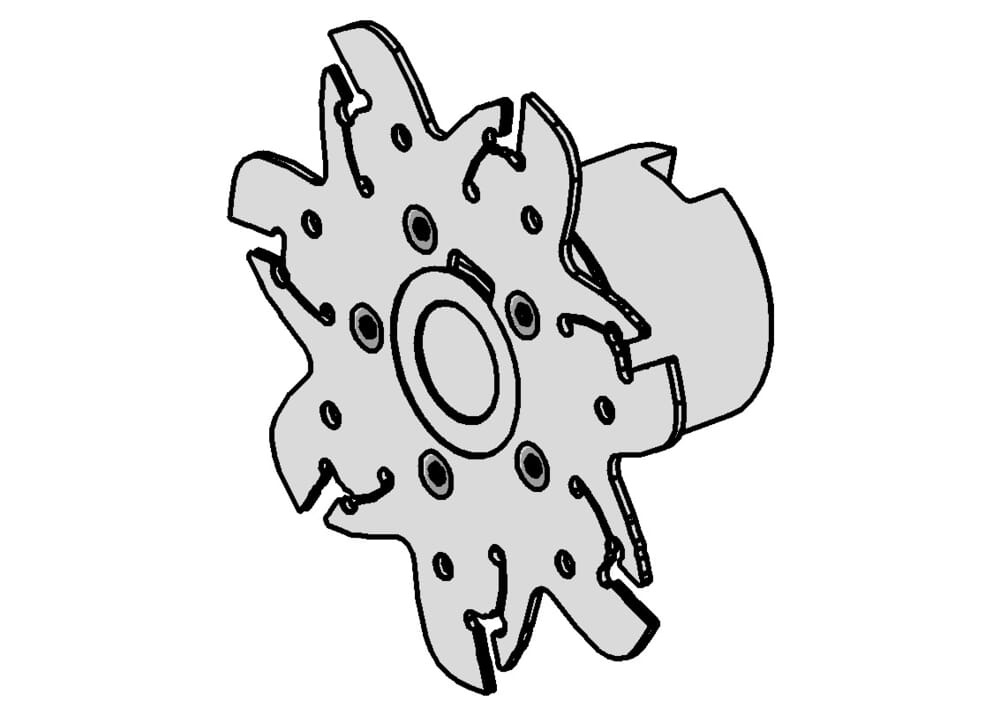

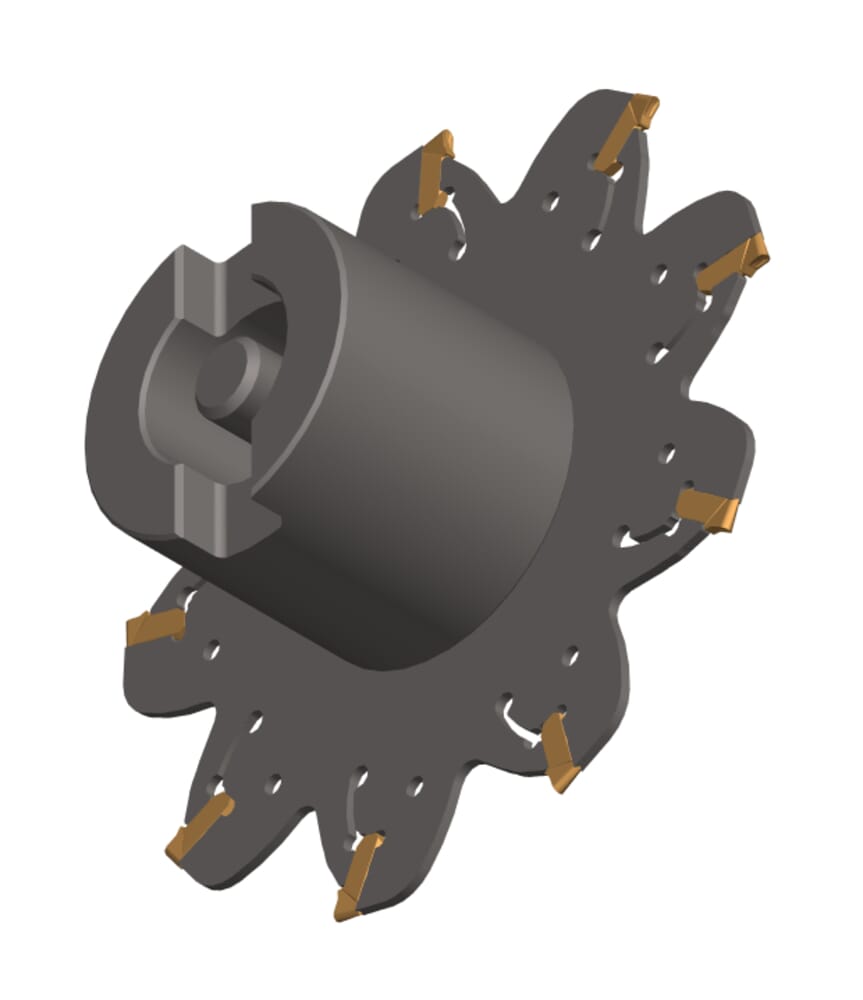

HORN Disk milling cutter M101.0100.A22.16 for Milling
Maximum milling depth (tmax)
1.102 ˝
28 mm
Lowering for mounting screw head (d1)
0.728 ˝
18.5 mm
Neck diameter/ Flange diameter miller mandrel (d4)
1.594 ˝
40.5 mm
Mounting hole depth (l1)
0.787 ˝
20 mm
Length from stop to base fastening screw head (l2)
0.972 ˝
24.7 mm
Width carrier cross groove (s)
0.409 ˝
10.4 mm
Depth carrier cross groove (P)
0.248 ˝
6.3 mm
Cutting width maximum (Schneidbreite)
0.071 ˝
1.8 mm
Cutting width minimum (Schneidbreite)
0.063 ˝
1.6 mm
Wide disc cutter without cutting insert (b)
0.051 ˝
1.3 mm
Diameter facing system for disk cutters (d3)
0.866 ˝
22 mm
Diameter of the mandrel (d2)
1.594 ˝
40.5 mm
tool-application
rotating
Cutting diameter (Ds)
3.937 ˝
100 mm
Katalog_CCTWS
10116
Miller length with indexable insert (h)
1.457 ˝
37 mm
