LNK66T.0220.08.20.IK
Material number LNK66T02200820IK

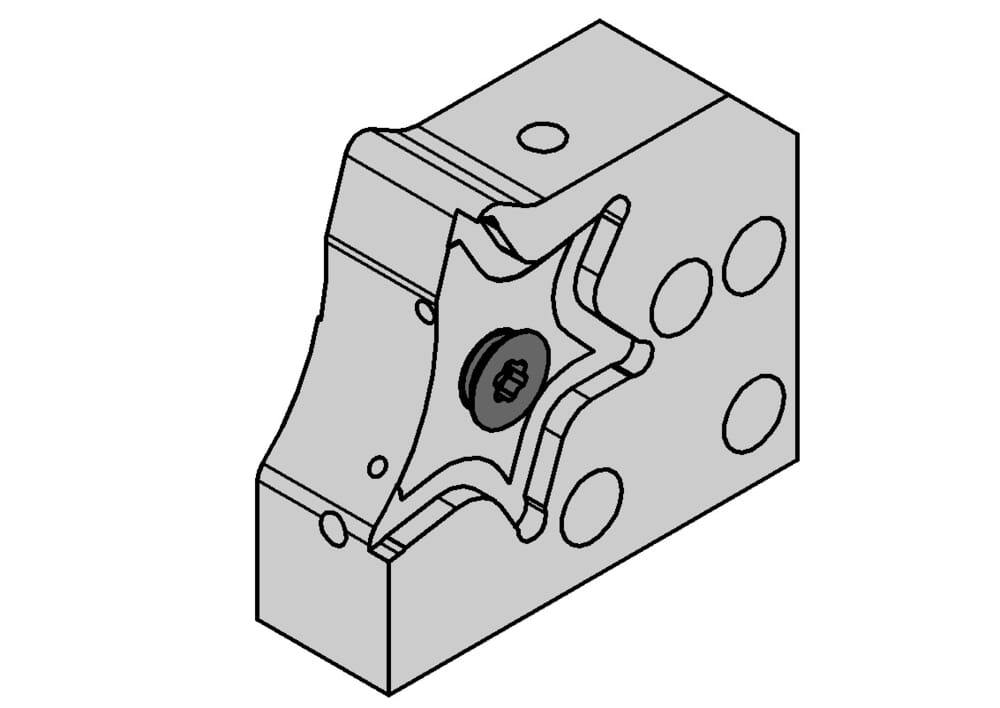

HORN Toolholder LNK66T.0220.08.20.IK for Turning
tool-application
static
machining-direction-sap
left
Katalog_CCTMS
220002
Katalog_CCTWS
66T02N

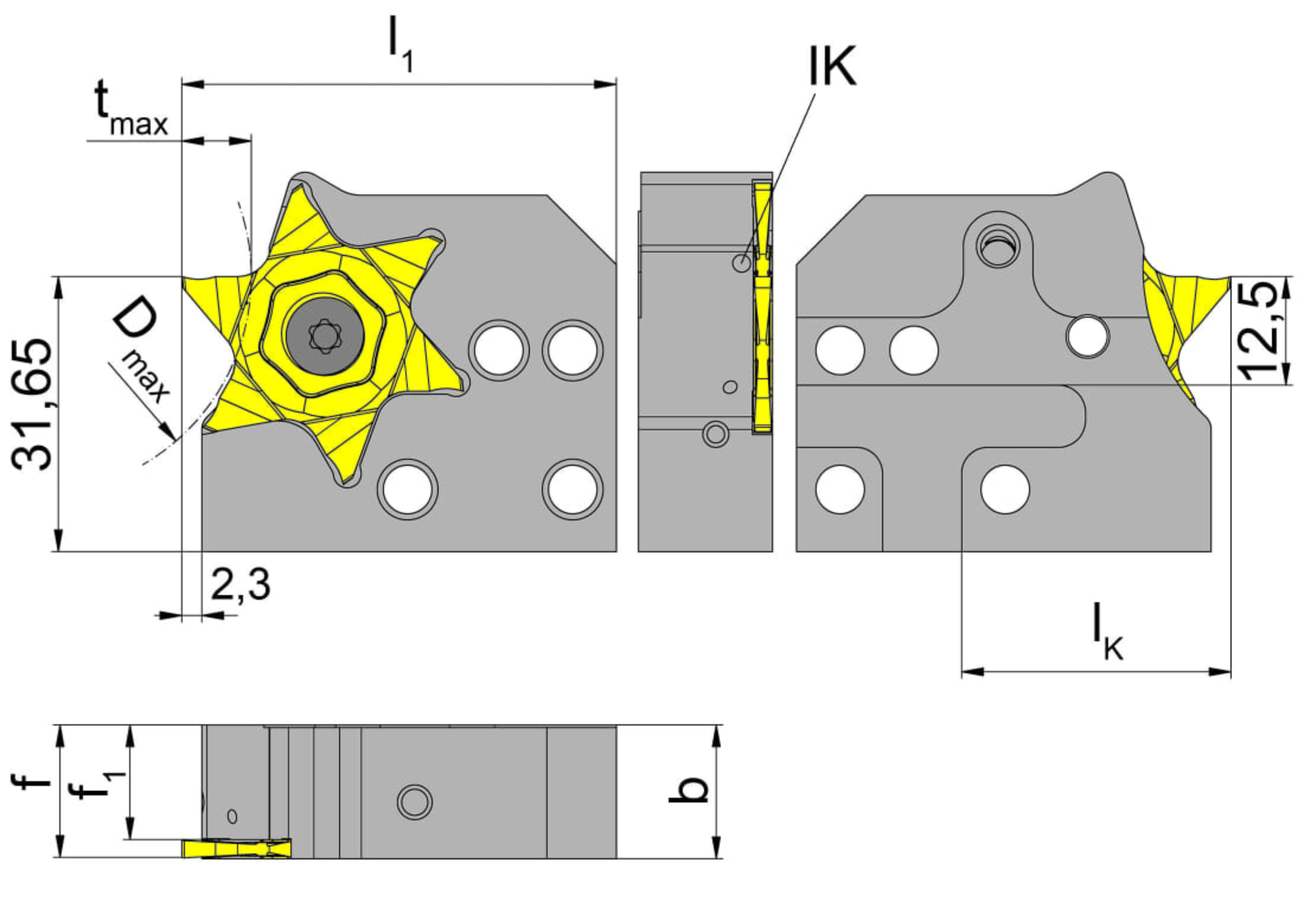

Total length (including cutting insert) (l1)
1.969 ˝
50 mm
Adjustment dimension locating face insert (f1)
0.5 ˝
12.7 mm
dimension-insert-to-face-holder-imp
0.091 ˝
2.3 mm
Maximum depth of groove (tmax)
0.374 ˝
9.5 mm
Length of unit cassette to cutting edge (lK)
1.22 ˝
31 mm
Cassette thickness (b)
0.606 ˝
15.4 mm
