LNK234.0842.33.4.02.IK

Material number LNK234084233402IK

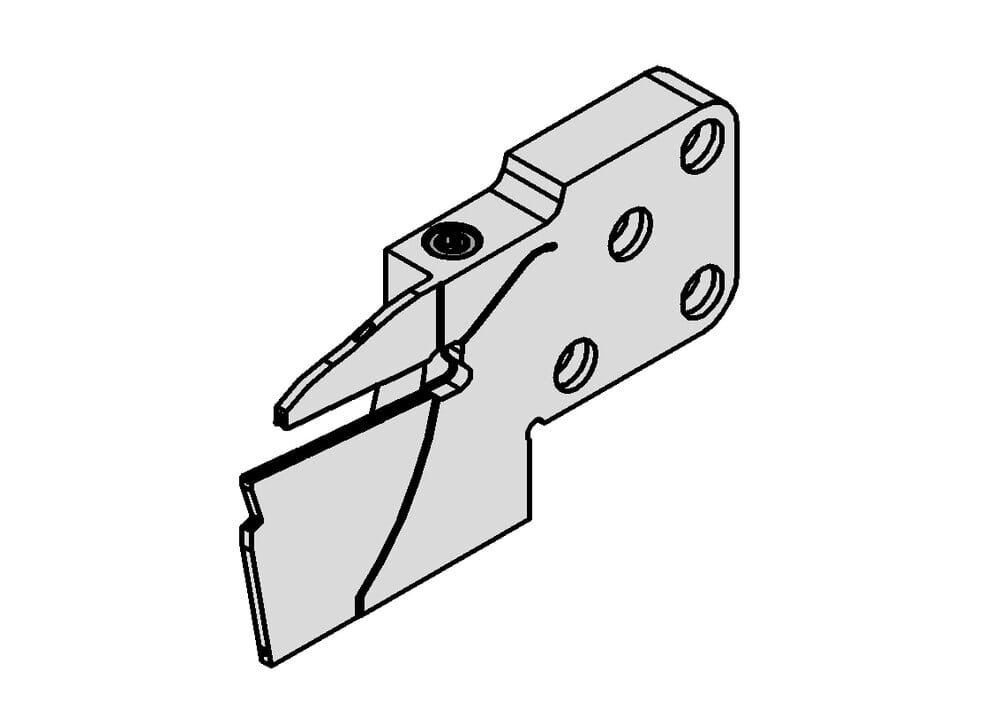

HORN Toolholder LNK234.0842.33.4.02.IK for Turning

Maximum depth of groove (tmax)

1.299 ˝

33 mm

tool-application

static

Width of groove (mm) (w)

0.079 ˝

2 mm

machining-direction-sap

left

Katalog_CCTMS

842002;842001

Katalog_CCTWS

23401

Maximum workpiece diameter (Dmax)

3.15 ˝

80 mm

Length of unit cassette to cutting edge (lK)

1.929 ˝

49 mm

Total length (including cutting insert) (l1)

3.346 ˝

85 mm

Adjustment dimension cutting center (f2)

0.354 ˝

9 mm
