LHC105.1212.21
Material number LHC105121221

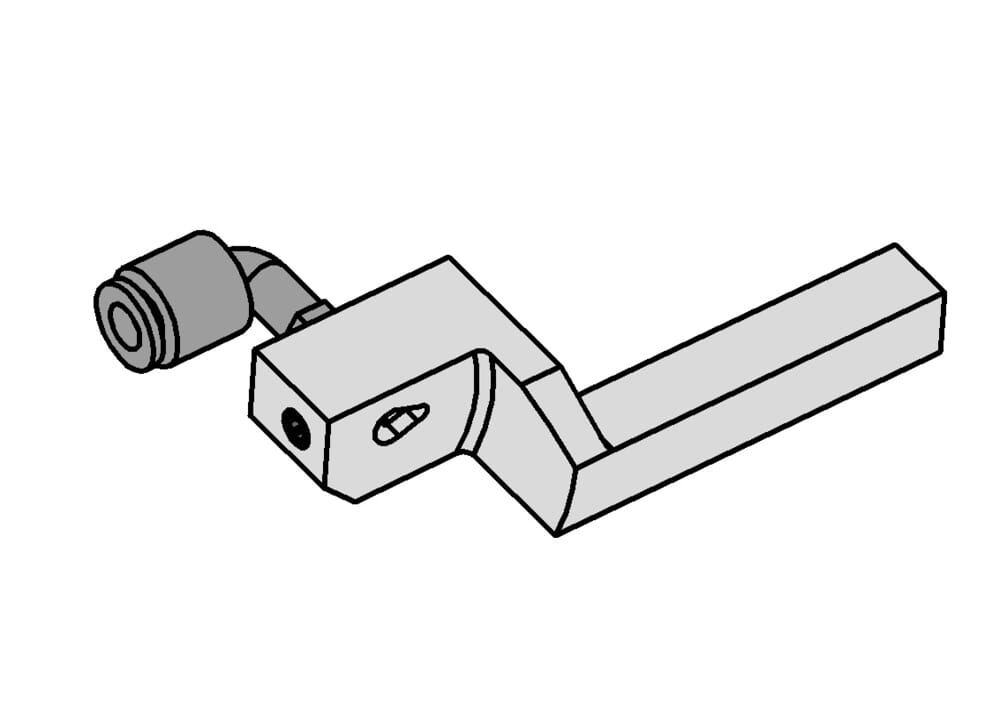

HORN Toolholders LHC105.1212.21 for Turning
Peak height (h1)
0.472 ˝
12 mm
Head length top without insert (l3)
1.142 ˝
29 mm
Katalog_CCTWS
105123;105124;105125
Working length, Extension length (l2)
0.709 ˝
18 mm
machining-direction-sap
left
tool-application
static
us-cutting
No
Adjustment dimension cutting center (f1)
0.748 ˝
19 mm
Total length (without cutting insert) (l1)
3.898 ˝
99 mm
Shank height (h)
0.472 ˝
12 mm
Head width (b1)
1.496 ˝
38 mm
Head height (HK)
0.709 ˝
18 mm
length-overall-met
3.898 ˝
99 mm
Maximum workpiece diameter (Da max)
1.024 ˝
26 mm
Shank width (b)
0.472 ˝
12 mm
| Downloads | |
|---|---|
| LHC105_1212_21-DXF.DXF | Download |
| LHC105_1212_21-STP.STP | Download |
| LHC105_1212_21-ISO.XML | Download |
| LHC105_1212_21-DIN.XML | Download |
| Download all files | |
