LH34T.1616.6.10.IK
Material number LH34T1616610IK

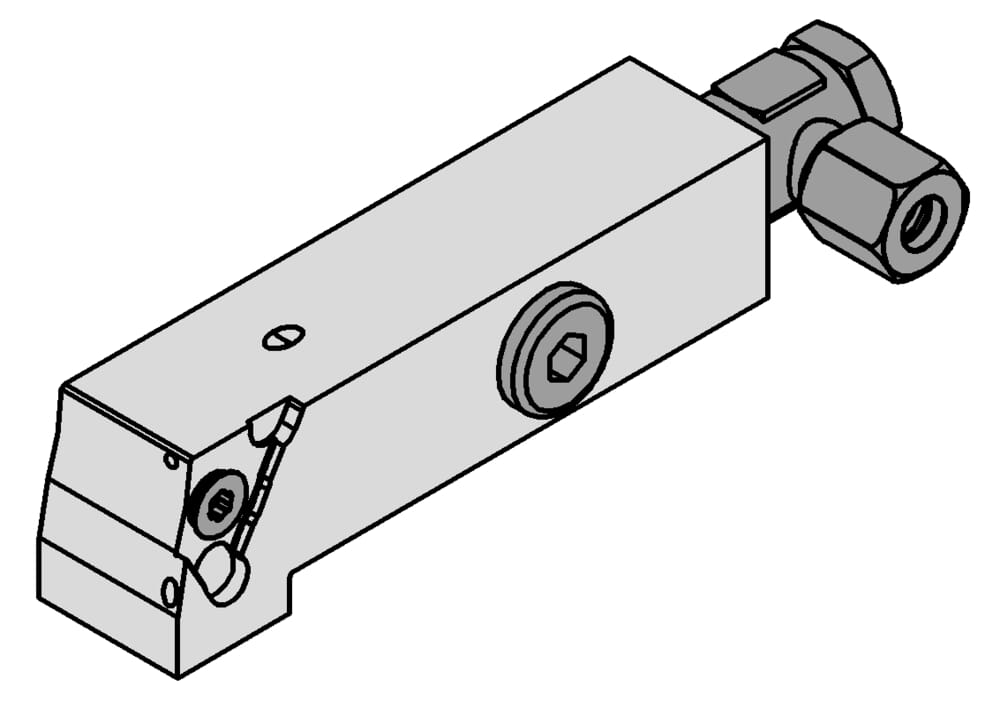

HORN Toolholder LH34T.1616.6.10.IK for Turning
Adjustment dimension (formula) (f)
f1+w-a1
Head length (including cutting edge) (l2)
0.787 ˝
20 mm
clamping-range-max-imp
0.079 ˝
2 mm
clamping-range-min-imp
0.079 ˝
2 mm
Katalog_CCTWS
34T01N
machining-direction-sap
left
tool-application
static
us-cutting
No
Adjustment dimension (f1)
0.571 ˝
14.5 mm
Total length (including cutting insert) (l1)
2.913 ˝
74 mm
Shank height (h)
0.63 ˝
16 mm
length-overall-met
2.913 ˝
74 mm
Maximum depth of groove (tmax)
0.256 ˝
6.5 mm
Maximum workpiece diameter (Dmax)
2.362 ˝
60 mm
Peak height (h1)
0.827 ˝
21 mm
Shank width (b)
0.63 ˝
16 mm
