LH34T.1616.6.00.IK
Material number LH34T1616600IK

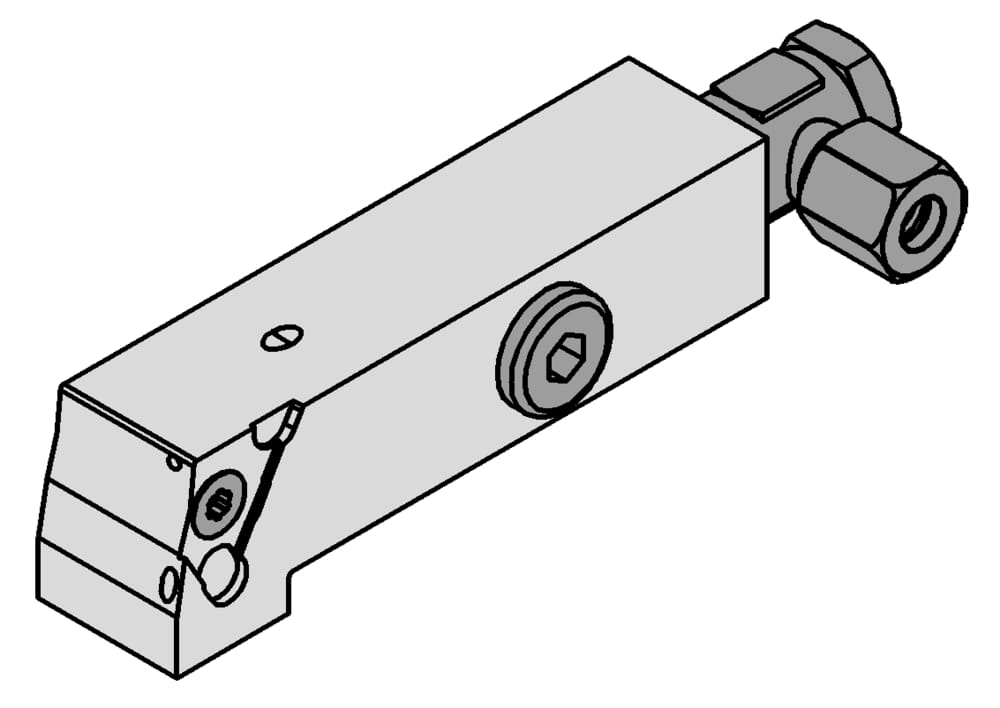

HORN Toolholder LH34T.1616.6.00.IK for Turning
clamping-range-min-imp
0.041 ˝
1.03 mm
Peak height (h1)
0.827 ˝
21 mm
clamping-range-max-met
0.041 ˝
1.03 mm
Adjustment dimension (formula) (f)
f1+w-a1
Head length (including cutting edge) (l2)
0.787 ˝
20 mm
tool-application
static
Maximum workpiece diameter (Dmax)
2.362 ˝
60 mm
Katalog_CCTWS
34T00L
machining-direction-sap
left
us-cutting
No
Maximum depth of groove (tmax)
0.256 ˝
6.5 mm
Shank width (b)
0.63 ˝
16 mm
Adjustment dimension (f1)
0.598 ˝
15.2 mm
Total length (including cutting insert) (l1)
2.913 ˝
74 mm
Shank height (h)
0.63 ˝
16 mm
length-overall-met
2.913 ˝
74 mm
| Downloads | |
|---|---|
| LH34T_1616_6_00_IK-DXF.DXF | Download |
| LH34T_1616_6_00_IK-STP.STP | Download |
| LH34T_1616_6_00_IK-ISO.XML | Download |
| LH34T_1616_6_00_IK-DIN.XML | Download |
| Download all files | |
