LH316.3225.S3.03
Material number LH3163225S303

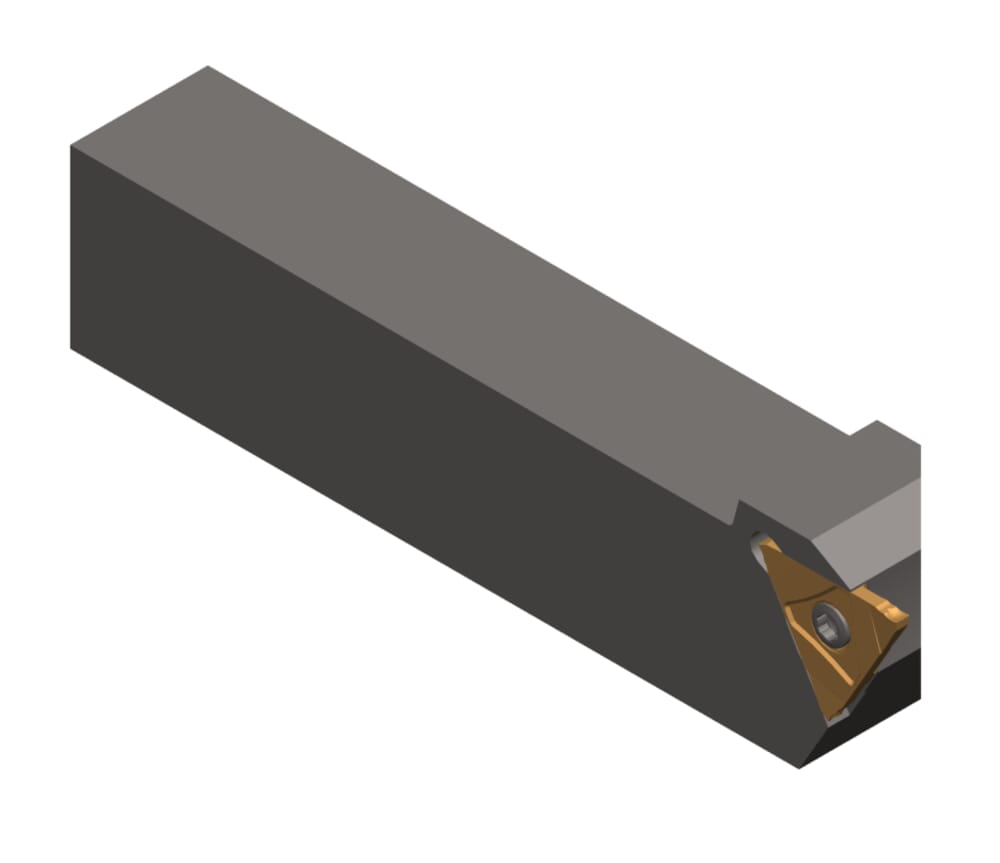

HORN Toolholder LH316.3225.S3.03 for Turning
Adjustment dimension locating face insert (f1)
0.854 ˝
21.7 mm
tool-application
static
Katalog_CCTWS
S31603L
Shank width (b)
0.984 ˝
25 mm
Peak height (h1)
1.26 ˝
32 mm
Maximum depth of groove (tmax)
0.315 ˝
8 mm
length-overall-imp
5.906 ˝
150 mm
Shank height (h)
1.26 ˝
32 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
| Downloads | |
|---|---|
| LH316_3225_S3_03.STP | Download |
| Download all files | |
