LH316.2525.08.SA.03.IK

Material number LH316252508SA03IK

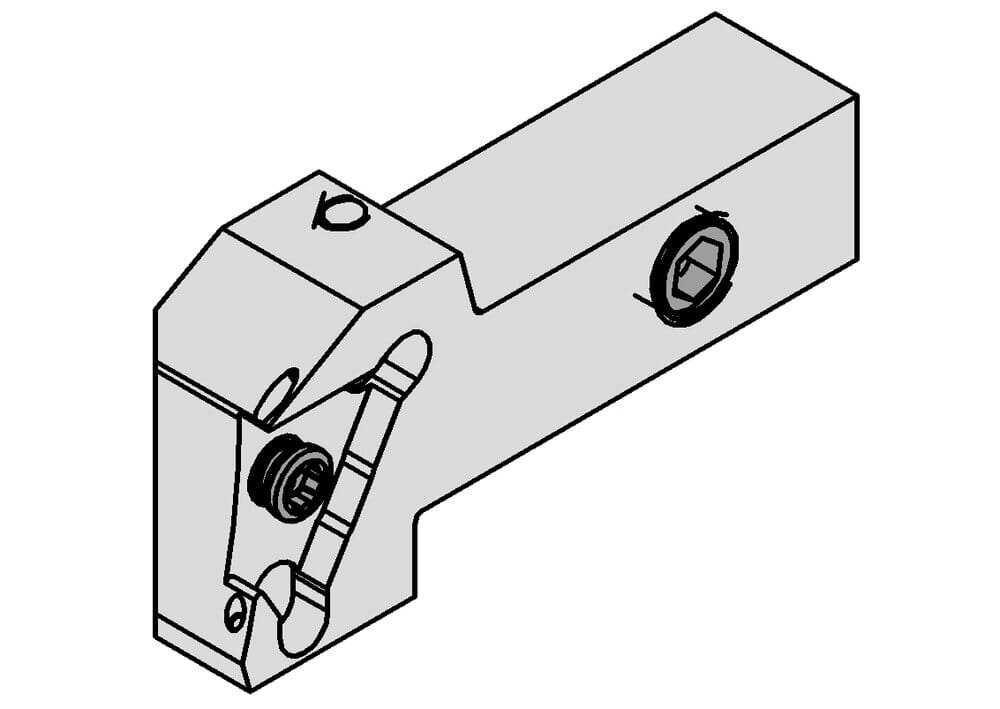

HORN Toolholder LH316.2525.08.SA.03.IK for Turning

Maximum depth of groove (tmax)

0.315 ˝

8 mm

us-cutting

machining-direction-sap

left

Katalog_CCTWS

S31603L

Adjustment dimension locating face insert (f)

0.854 ˝

21.7 mm

tool-application

static

Peak height (h1)

1.102 ˝

28 mm

length-overall-imp

4.134 ˝

105 mm

Shank height (h)

0.984 ˝

25 mm

Total length (including cutting insert) (l)

4.134 ˝

105 mm

Shank width (b)

0.984 ˝

25 mm
