LH224.2525.03
Material number LH224252503

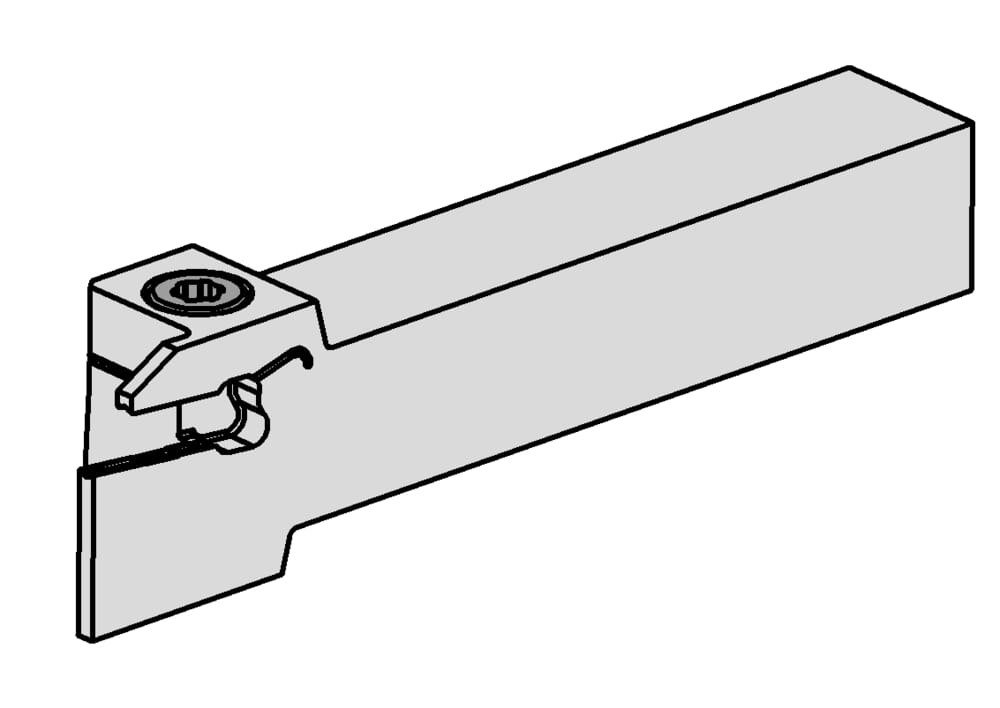

HORN Toolholders LH224.2525.03 for Turning
Adjustment dimension (formula) (f)
f1+w/2
Clamping range minimum (Spannbereich)
0.11 ˝
2.8 mm
Katalog_CCTWS
224038
Width of groove (w)
0.118 ˝
3 mm
Clamping range maximum (Spannbereich)
0.146 ˝
3.7 mm
tool-application
static
machining-direction-sap
left
us-cutting
No
Adjustment dimension cutting center (f1)
0.941 ˝
23.9 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Shank height (h)
0.984 ˝
25 mm
length-overall-met
5.906 ˝
150 mm
Maximum insertion depth (tmax)
0.551 ˝
14 mm
Maximum workpiece diameter (Dmax)
3.15 ˝
80 mm
Peak height (h1)
0.984 ˝
25 mm
Shank width (b)
0.984 ˝
25 mm
