LH224.2020.63
Material number LH224202063

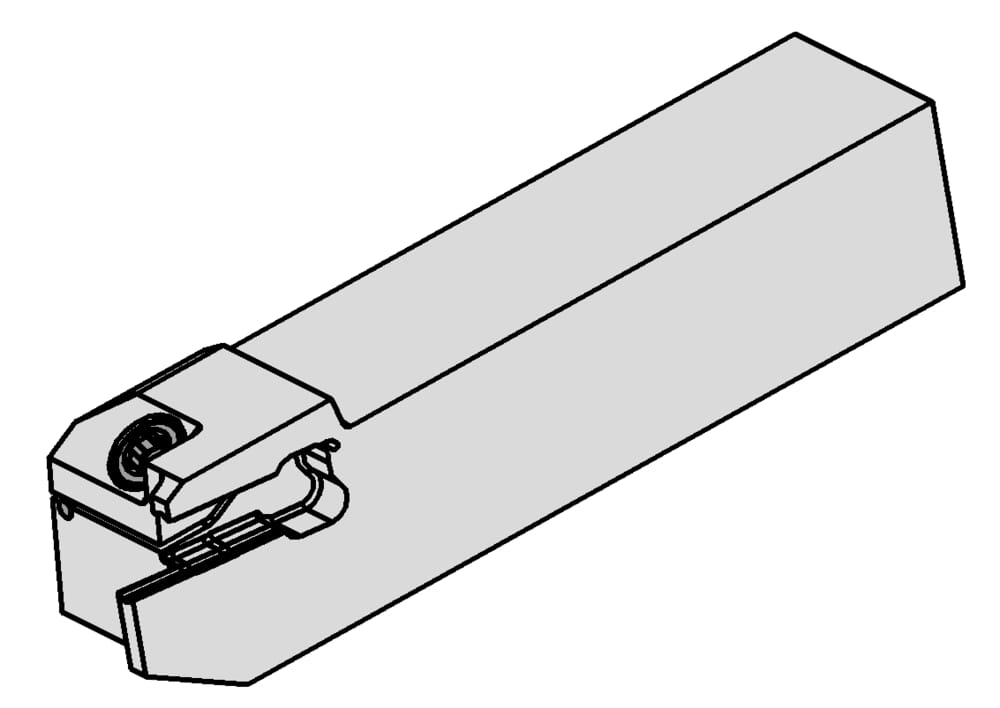

HORN Toolholder LH224.2020.63 for Turning
Width of groove (mm) (w)
0.118 ˝
3 mm
Clamping range minimum (Spannbereich)
0.11 ˝
2.8 mm
Katalog_CCTWS
224038
Clamping range maximum (Spannbereich)
0.146 ˝
3.7 mm
machining-direction-sap
left
tool-application
static
us-cutting
No
Adjustment dimension cutting center (f1)
0.043 ˝
1.1 mm
Total length (including cutting insert) (l1)
3.937 ˝
100 mm
Shank height (h)
0.787 ˝
20 mm
length-overall-met
3.937 ˝
100 mm
Maximum insertion depth (tmax)
0.276 ˝
7 mm
Maximum workpiece diameter (Dmax)
3.937 ˝
100 mm
Peak height (h1)
0.787 ˝
20 mm
Shank width (b)
0.787 ˝
20 mm
| Downloads | |
|---|---|
| LH224_2020_63-DXF.DXF | Download |
| LH224_2020_63-STP.STP | Download |
| LH224_2020_63-ISO.XML | Download |
| LH224_2020_63-DIN.XML | Download |
| Download all files | |
