LH224.2020.61
Material number LH224202061

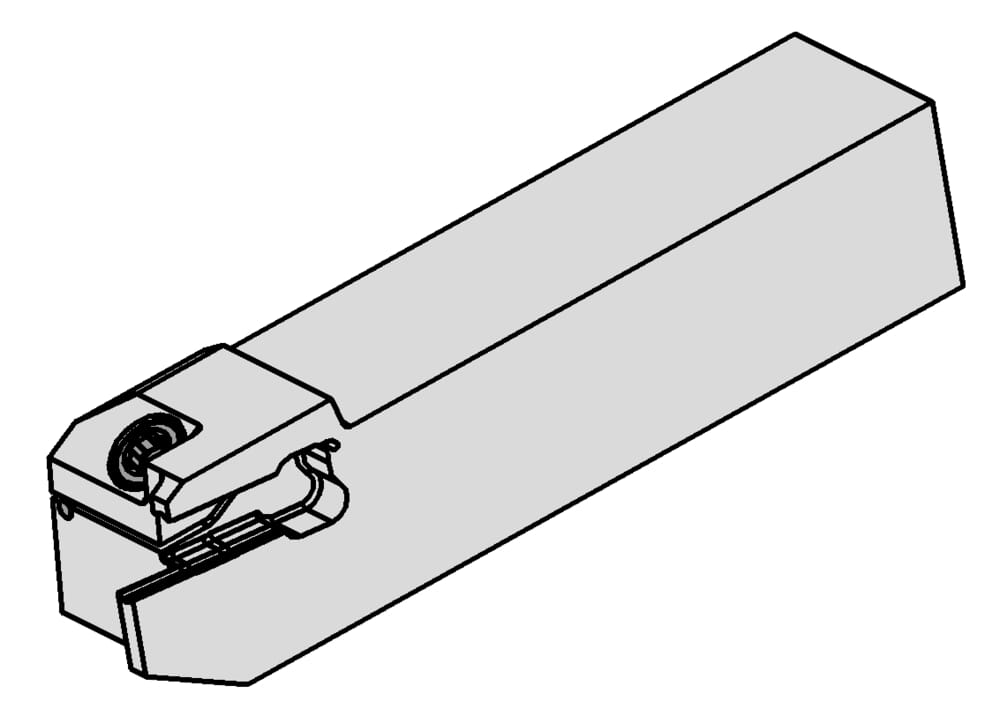

HORN Toolholder LH224.2020.61 for Turning
Width of groove (mm) (w)
0.079 ˝
2 mm
Clamping range minimum (Spannbereich)
0.079 ˝
2 mm
Katalog_CCTWS
224018
Clamping range maximum (Spannbereich)
0.094 ˝
2.4 mm
machining-direction-sap
left
tool-application
static
cutting
0
us-cutting
No
Adjustment dimension cutting center (f1)
0.028 ˝
0.7 mm
Total length (including cutting insert) (l1)
3.937 ˝
100 mm
Shank height (h)
0.787 ˝
20 mm
length-overall-met
3.937 ˝
100 mm
Maximum insertion depth (tmax)
0.276 ˝
7 mm
Maximum workpiece diameter (Dmax)
3.937 ˝
100 mm
Peak height (h1)
0.787 ˝
20 mm
Shank width (b)
0.787 ˝
20 mm
| Downloads | |
|---|---|
| LH224202061.DXF | Download |
| LH224_2020_61.STP | Download |
| Download all files | |
