LH224.2020.25
Material number LH224202025

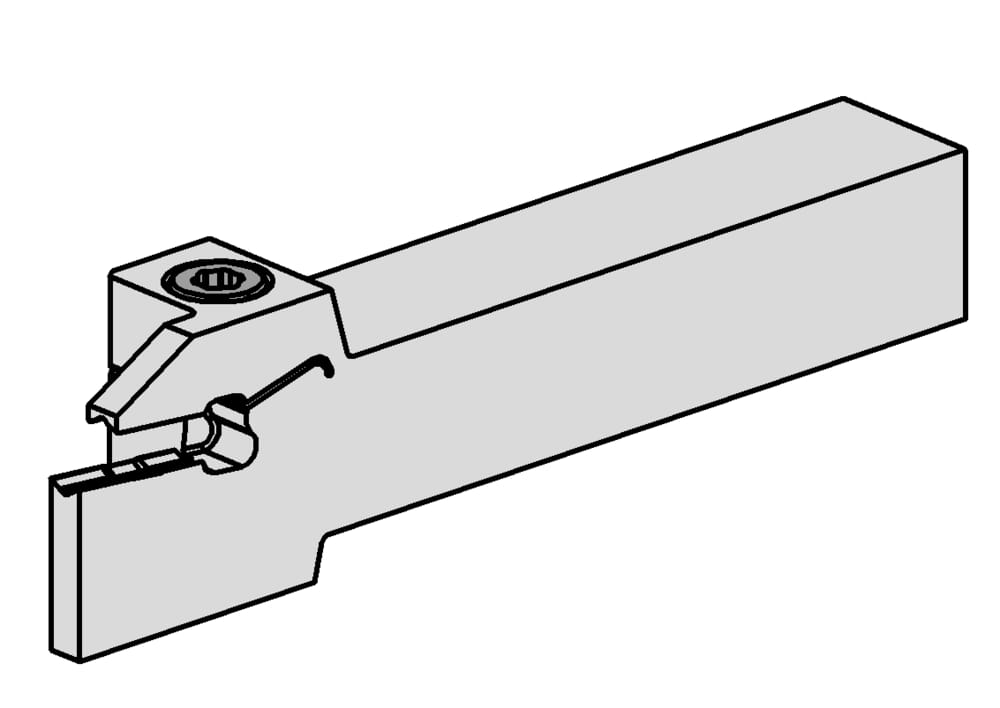

HORN Toolholders LH224.2020.25 for Turning
Adjustment dimension (formula) (f)
f1+w/2
Clamping range minimum (Spannbereich)
0.173 ˝
4.4 mm
Katalog_CCTWS
224058
Width of groove (w)
0.197 ˝
5 mm
Clamping range maximum (Spannbereich)
0.201 ˝
5.1 mm
machining-direction-sap
left
tool-application
static
us-cutting
No
Adjustment dimension cutting center (f1)
0.715 ˝
18.15 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Shank height (h)
0.787 ˝
20 mm
length-overall-met
4.921 ˝
125 mm
Maximum insertion depth (tmax)
0.709 ˝
18 mm
Maximum workpiece diameter (Dmax)
3.15 ˝
80 mm
Peak height (h1)
0.787 ˝
20 mm
Shank width (b)
0.787 ˝
20 mm
