LH224.2020.2.23.IK
Material number LH2242020223IK

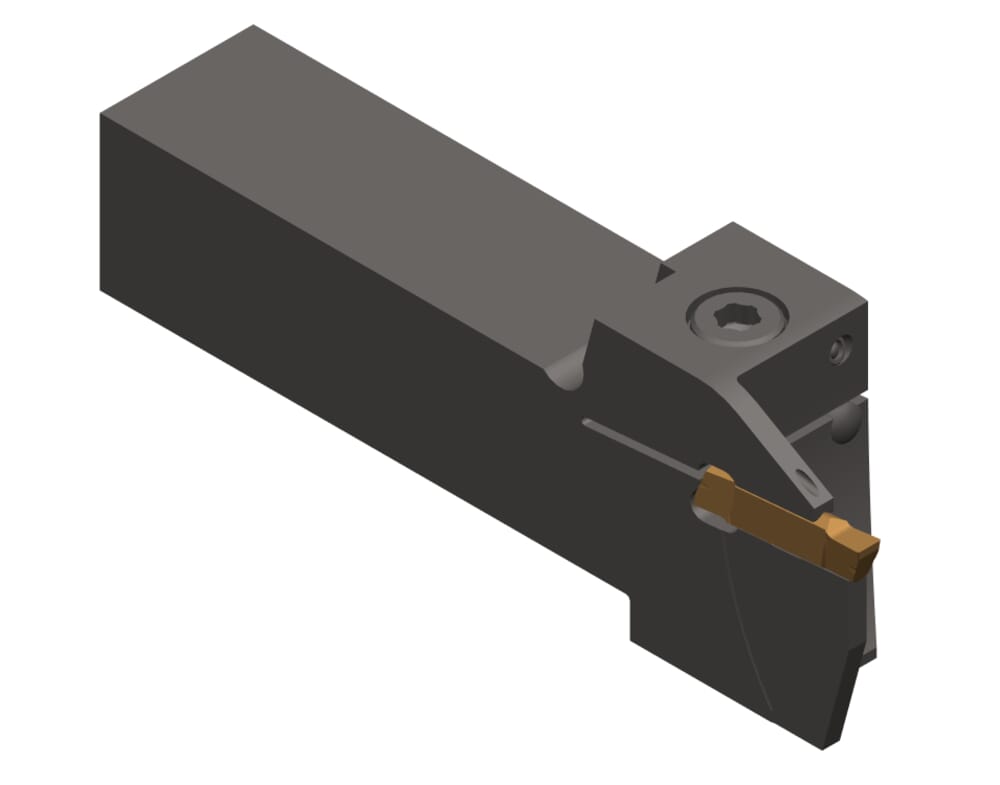

HORN Toolholder LH224.2020.2.23.IK for Turning
Head length (including cutting edge) (l2)
1.181 ˝
30 mm
tool-application
static
machining-direction-sap
left
Adjustment dimension (formula) (f)
f1+w/2
Katalog_CCTWS
224038
Head length top (including cutting edge) (l3)
1.535 ˝
39 mm
Shank width (b)
0.787 ˝
20 mm
Peak height (h1)
0.984 ˝
25 mm
Maximum insertion depth (tmax)
0.709 ˝
18 mm
length-overall-imp
3.898 ˝
99 mm
Shank height (h)
0.787 ˝
20 mm
Total length (including cutting insert) (l1)
3.898 ˝
99 mm
Adjustment dimension cutting center (f1)
0.738 ˝
18.75 mm
