LH224.2020.2.05.IK
Material number LH2242020205IK

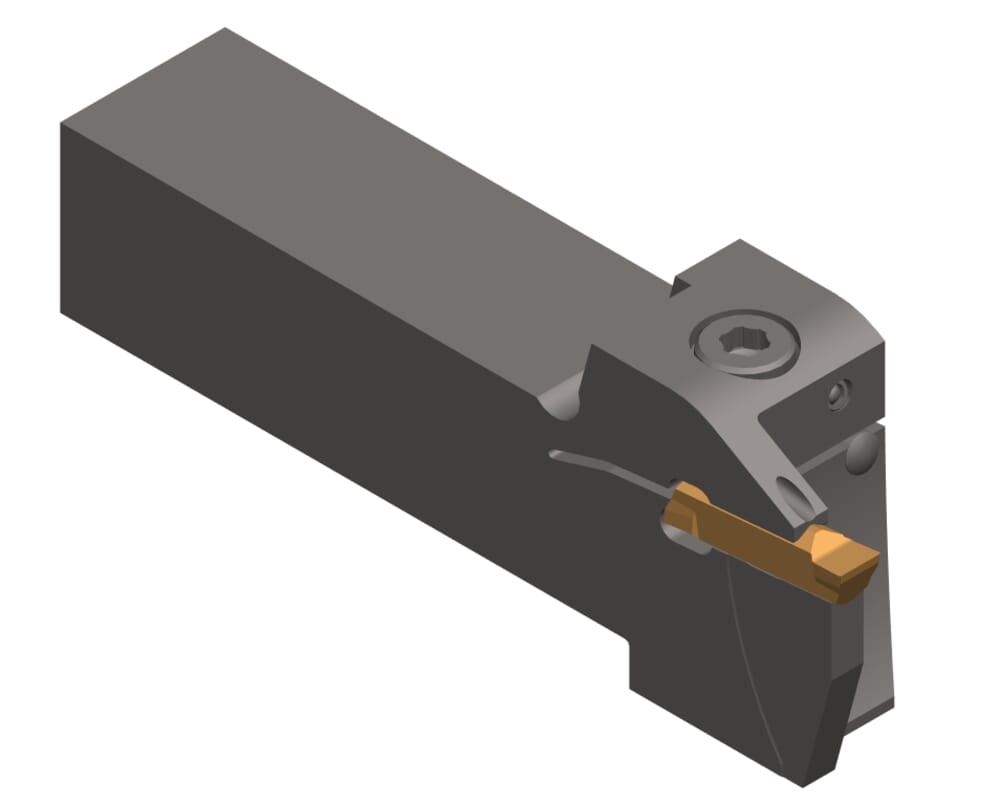

HORN Toolholder LH224.2020.2.05.IK for Turning
Head length (including cutting edge) (l2)
1.024 ˝
26 mm
tool-application
static
machining-direction-sap
left
Adjustment dimension (formula) (f)
f1+w/2
Katalog_CCTWS
224058
Head length top (including cutting edge) (l3)
1.378 ˝
35 mm
Shank width (b)
0.787 ˝
20 mm
Peak height (h1)
0.984 ˝
25 mm
Maximum insertion depth (tmax)
0.551 ˝
14 mm
length-overall-imp
3.74 ˝
95 mm
Shank height (h)
0.787 ˝
20 mm
Total length (including cutting insert) (l1)
3.74 ˝
95 mm
Adjustment dimension cutting center (f1)
0.707 ˝
17.95 mm
| Downloads | |
|---|---|
| LH2242020205IK_20230113_102838805.STP | Download |
| Download all files | |
