LH224.2020.02
Material number LH224202002

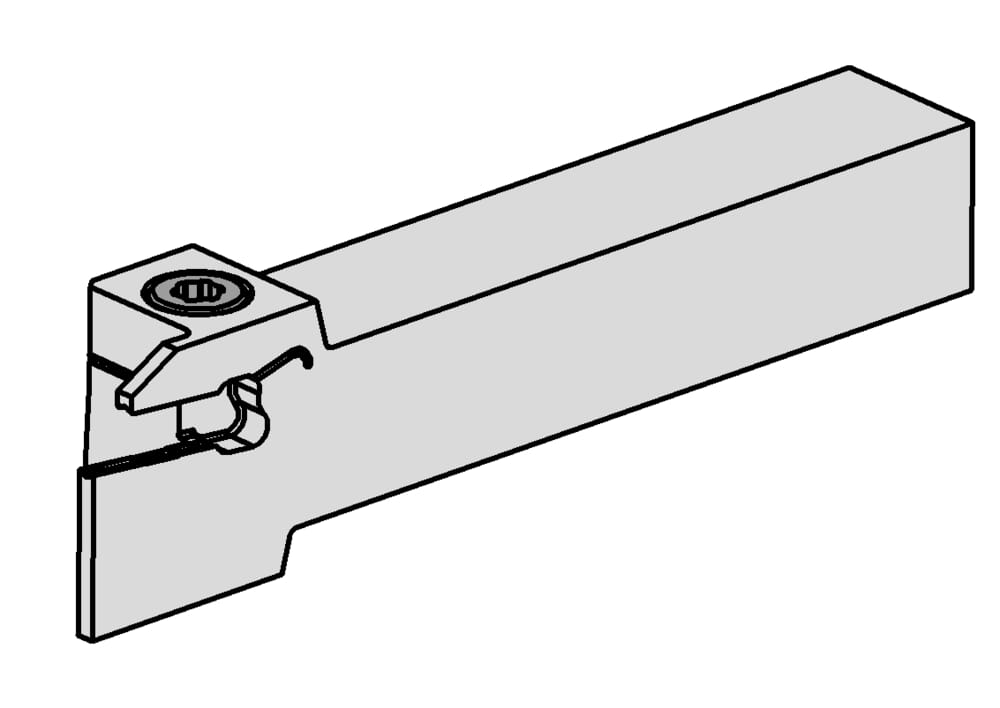

HORN Toolholders LH224.2020.02 for Turning
Adjustment dimension (formula) (f)
f1+w/2
Clamping range minimum (Spannbereich)
0.094 ˝
2.4 mm
Katalog_CCTWS
224028
Width of groove (w)
0.098 ˝
2.5 mm
Clamping range maximum (Spannbereich)
0.11 ˝
2.8 mm
machining-direction-sap
left
tool-application
static
us-cutting
No
Adjustment dimension cutting center (f1)
0.752 ˝
19.1 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Shank height (h)
0.787 ˝
20 mm
length-overall-met
4.921 ˝
125 mm
Maximum insertion depth (tmax)
0.551 ˝
14 mm
Maximum workpiece diameter (Dmax)
3.15 ˝
80 mm
Peak height (h1)
0.787 ˝
20 mm
Shank width (b)
0.787 ˝
20 mm
| Downloads | |
|---|---|
| LH224_2020_02-DXF.DXF | Download |
| LH224_2020_02-STP.STP | Download |
| LH224_2020_02-ISO.XML | Download |
| LH224_2020_02-DIN.XML | Download |
| Download all files | |
