LH224.1616.2.25.IK
Material number LH2241616225IK

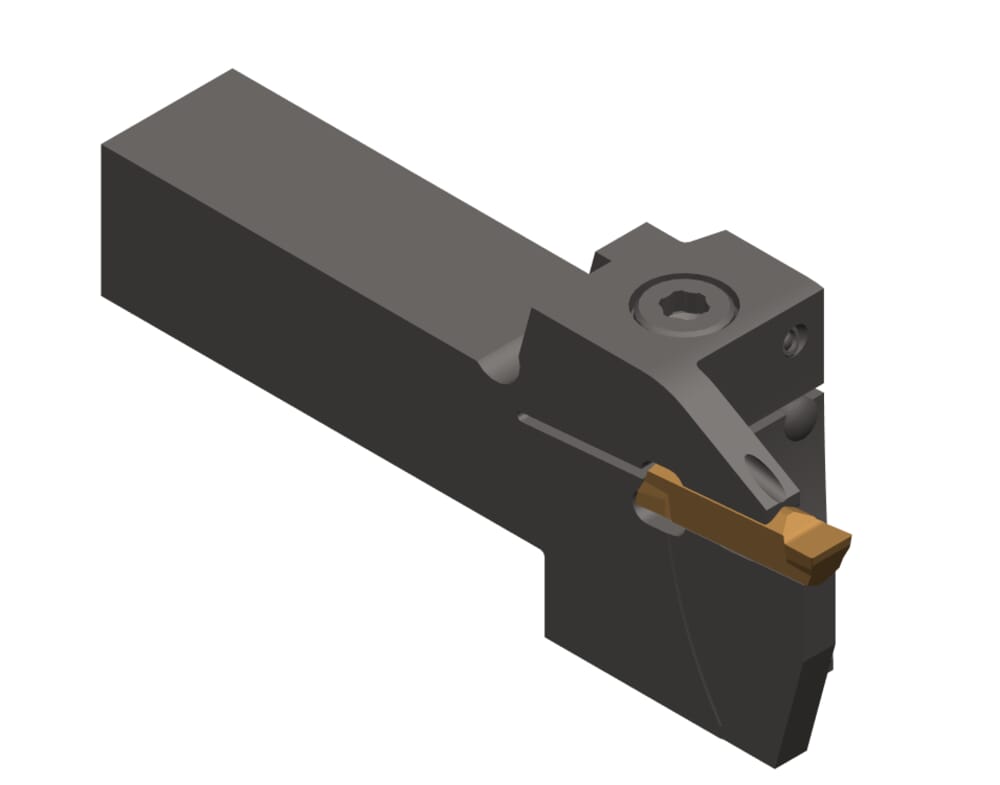

HORN Toolholder LH224.1616.2.25.IK for Turning
Head length (including cutting edge) (l2)
1.299 ˝
33 mm
machining-direction-sap
left
tool-application
static
Adjustment dimension (formula) (f)
f1+w/2
Katalog_CCTWS
224058
Head length top (including cutting edge) (l3)
1.535 ˝
39 mm
Shank width (b)
0.63 ˝
16 mm
Peak height (h1)
0.984 ˝
25 mm
Maximum insertion depth (tmax)
0.709 ˝
18 mm
length-overall-imp
3.425 ˝
87 mm
Shank height (h)
0.63 ˝
16 mm
Total length (including cutting insert) (l1)
3.425 ˝
87 mm
Adjustment dimension cutting center (f1)
0.549 ˝
13.95 mm
