LH224.1616.2.23.IK
Material number LH2241616223IK

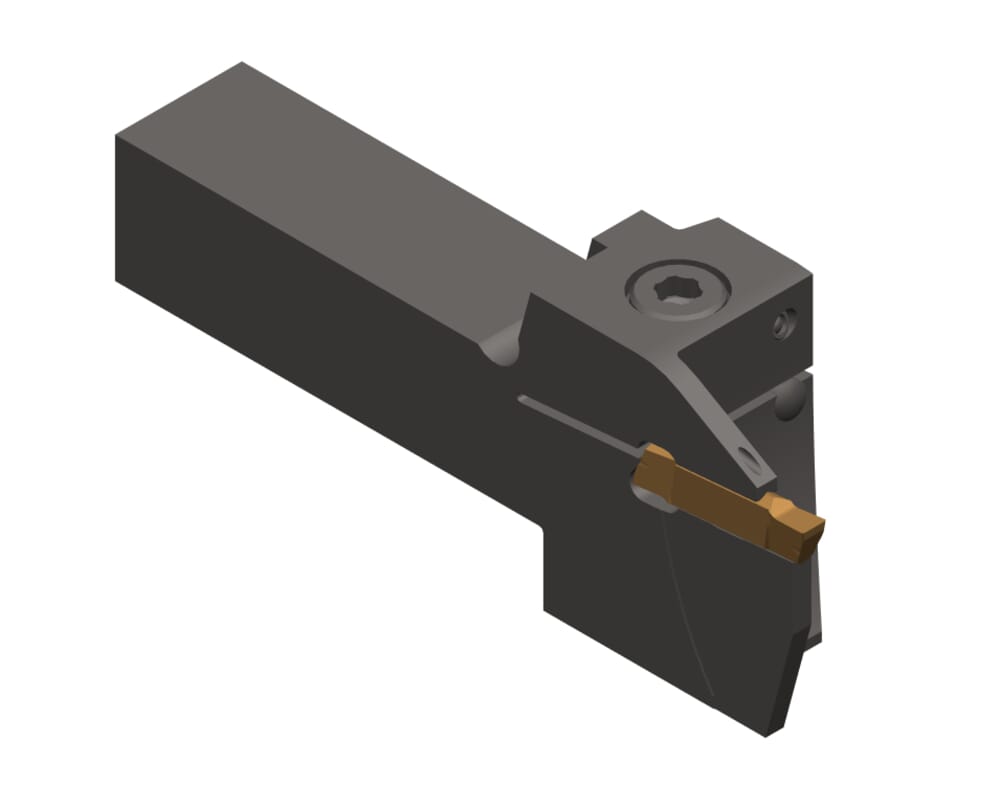

HORN LH224.1616.2.23.IK for Turning
Head length (including cutting edge) (l2)
1.299 ˝
33 mm
tool-application
static
Adjustment dimension (formula) (f)
f1+w/2
Katalog_CCTWS
224038
Head length top (including cutting edge) (l3)
1.535 ˝
39 mm
Shank width (b)
0.63 ˝
16 mm
Peak height (h1)
0.984 ˝
25 mm
Maximum insertion depth (tmax)
0.709 ˝
18 mm
length-overall-imp
3.425 ˝
87 mm
Shank height (h)
0.63 ˝
16 mm
Total length (including cutting insert) (l1)
3.425 ˝
87 mm
Adjustment dimension cutting center (f1)
0.581 ˝
14.75 mm
| Downloads | |
|---|---|
| LH2241616223IK_20210627_075236764.DXF | Download |
| LH2241616223IK_20230113_101816210.STP | Download |
| Download all files | |
