LH224.1616.21
Material number LH224161621

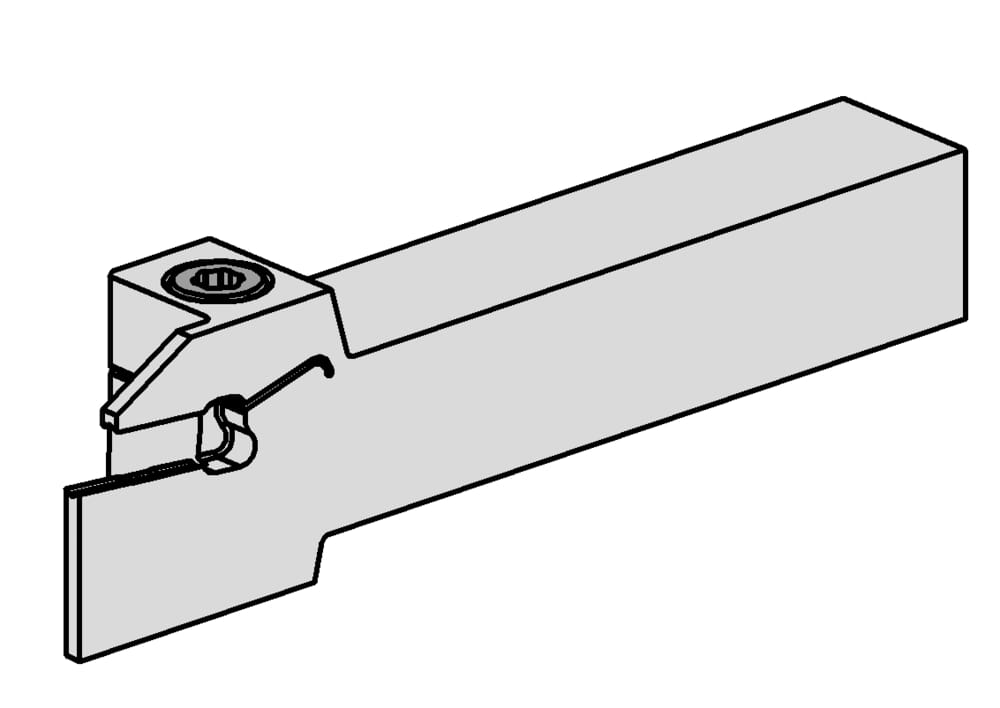

HORN Toolholders LH224.1616.21 for Turning
Width of groove (mm) (w)
0.079 ˝
2 mm
Clamping range maximum (Spannbereich)
0.094 ˝
2.4 mm
Clamping range minimum (Spannbereich)
0.079 ˝
2 mm
Katalog_CCTWS
224018
Head length (including cutting edge) (l2)
1.181 ˝
30 mm
Adjustment dimension (formula) (f)
f1+w/2
machining-direction-sap
left
tool-application
static
us-cutting
No
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Adjustment dimension cutting center (f1)
0.602 ˝
15.3 mm
Shank height (h)
0.63 ˝
16 mm
length-overall-met
4.921 ˝
125 mm
Maximum insertion depth (tmax)
0.709 ˝
18 mm
Maximum workpiece diameter (Dmax)
3.15 ˝
80 mm
Peak height (h1)
0.787 ˝
20 mm
Shank width (b)
0.63 ˝
16 mm
| Downloads | |
|---|---|
| LH224_1616_21-ISO.XML | Download |
| LH224_1616_21-DIN.XML | Download |
| LH224_1616_21-DXF.DXF | Download |
| LH224_1616_21-STP.STP | Download |
| Download all files | |
