LH224.1616.2.05.IK
Material number LH2241616205IK

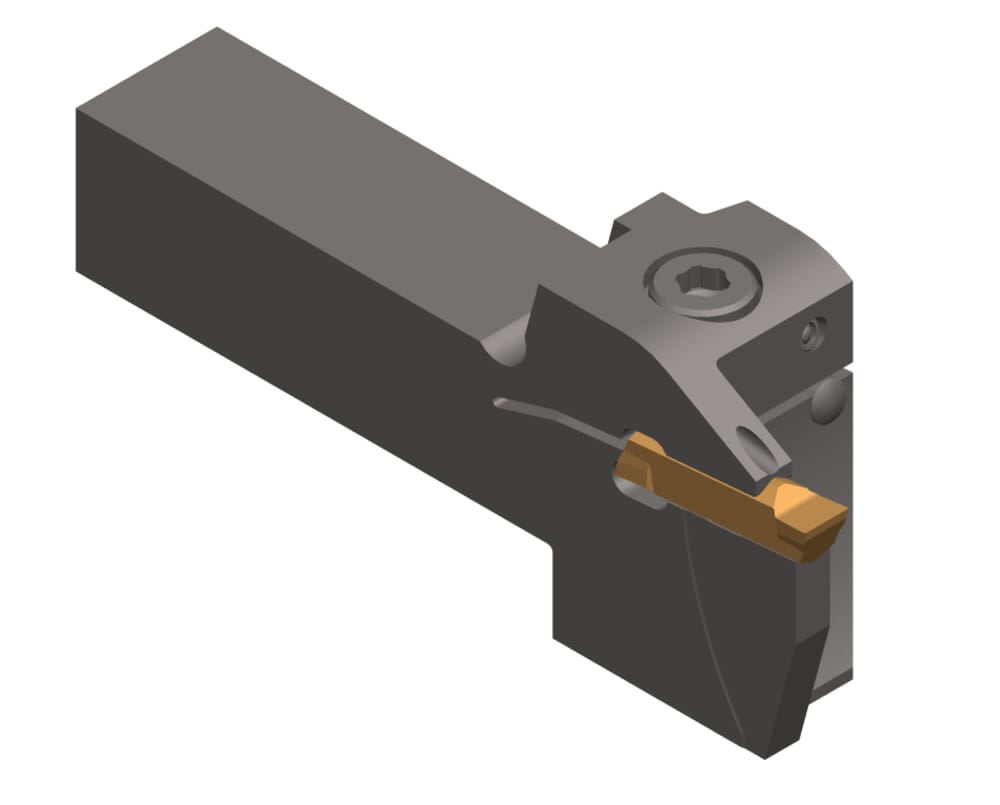

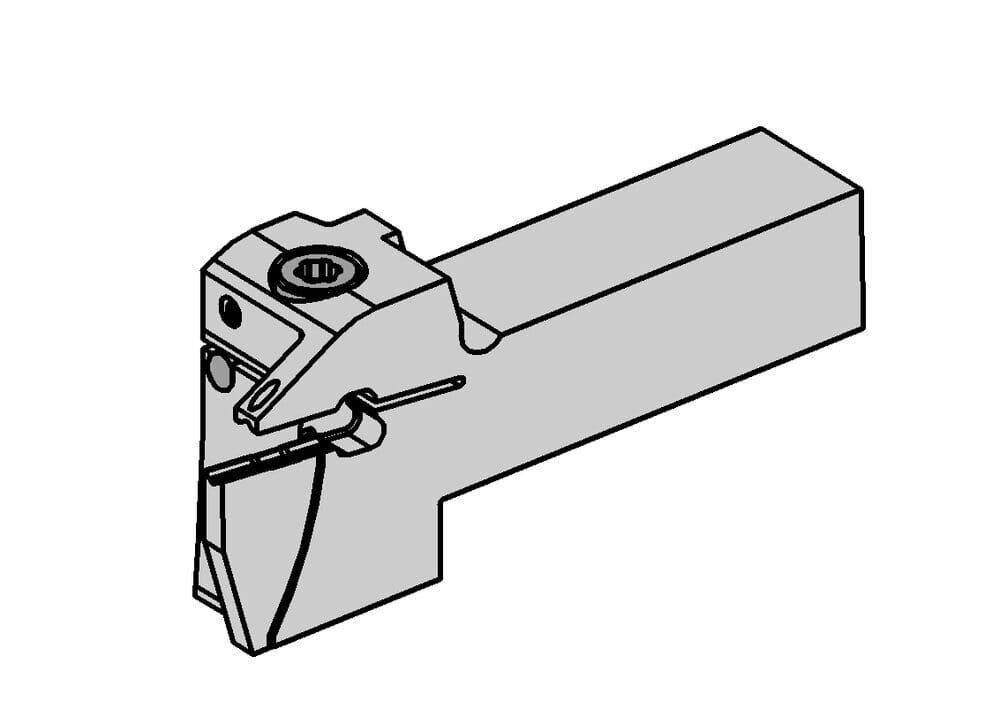

HORN Toolholder LH224.1616.2.05.IK for Turning
Head length top (including cutting edge) (l3)
1.378 ˝
35 mm
Katalog_CCTWS
224058
Adjustment dimension (formula) (f)
f1+w/2
tool-application
static
machining-direction-sap
left
us-cutting
No
Shank width (b)
0.63 ˝
16 mm
Head length (including cutting edge) (l2)
1.142 ˝
29 mm
Peak height (h1)
0.984 ˝
25 mm
Maximum insertion depth (tmax)
0.551 ˝
14 mm
length-overall-imp
3.268 ˝
83 mm
Shank height (h)
0.63 ˝
16 mm
Total length (including cutting insert) (l1)
3.268 ˝
83 mm
Adjustment dimension cutting center (f1)
0.549 ˝
13.95 mm
| Downloads | |
|---|---|
| LH224_1616_2_05_IK-DXF.DXF | Download |
| LH224_1616_2_05_IK-STP.STP | Download |
| LH224_1616_2_05_IK-ISO.XML | Download |
| LH224_1616_2_05_IK-DIN.XML | Download |
| Download all files | |
