LH224.1608.23
Material number LH224160823

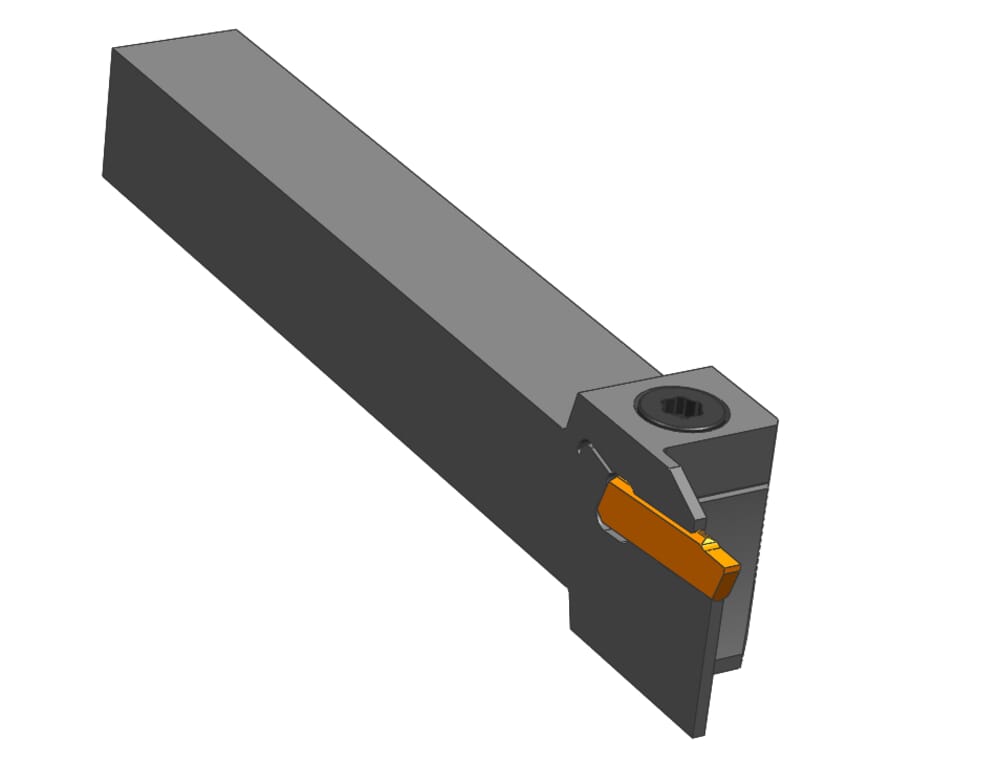

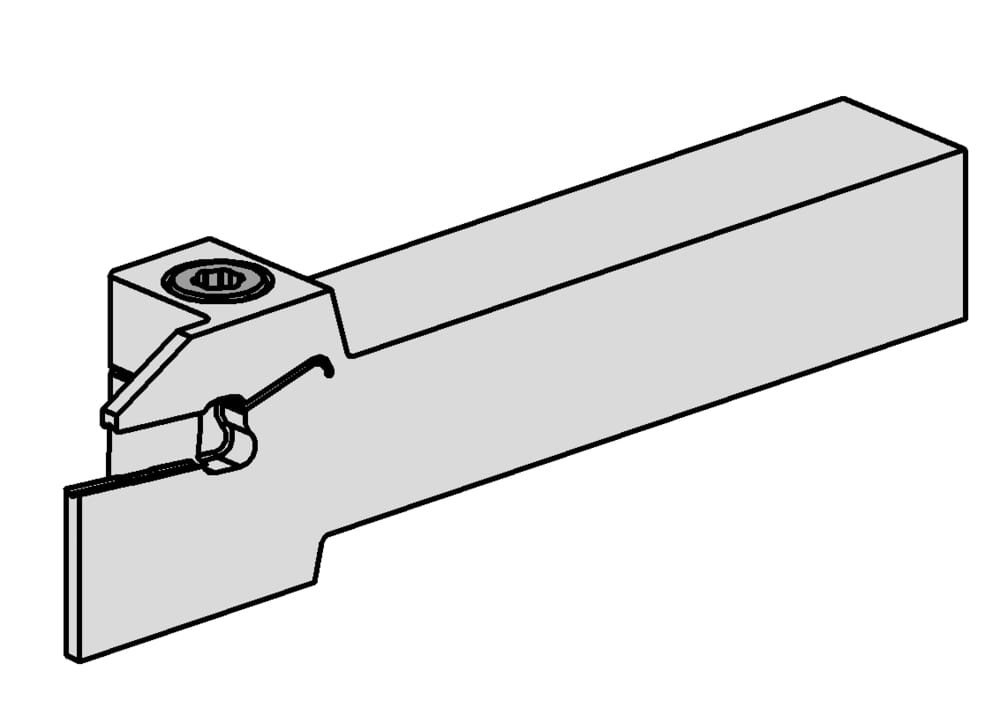

HORN Toolholders LH224.1608.23 for Turning
Width of groove (mm) (w)
0.118 ˝
3 mm
Clamping range maximum (Spannbereich)
0.146 ˝
3.7 mm
Clamping range minimum (Spannbereich)
0.11 ˝
2.8 mm
Katalog_CCTWS
224038
Head length (including cutting edge) (l2)
1.181 ˝
30 mm
Adjustment dimension (formula) (f)
f1+w/2
machining-direction-sap
left
tool-application
static
us-cutting
No
Total length (including cutting insert) (l1)
3.937 ˝
100 mm
Adjustment dimension cutting center (f1)
0.272 ˝
6.9 mm
Shank height (h)
0.63 ˝
16 mm
length-overall-met
3.937 ˝
100 mm
Maximum insertion depth (tmax)
0.709 ˝
18 mm
Maximum workpiece diameter (Dmax)
3.15 ˝
80 mm
Peak height (h1)
0.787 ˝
20 mm
Shank width (b)
0.315 ˝
8 mm
