LH224.1212.20.62
Material number LH22412122062

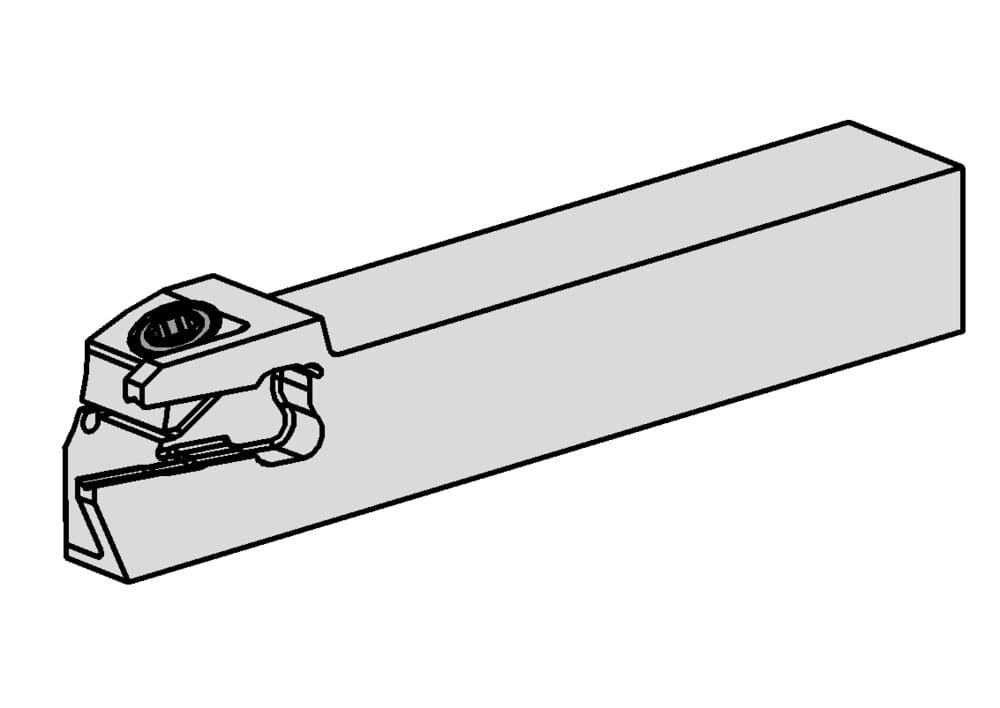

HORN Toolholder LH224.1212.20.62 for Turning
Width of groove (mm) (w)
0.098 ˝
2.5 mm
Clamping range maximum (Spannbereich)
0.11 ˝
2.8 mm
Clamping range minimum (Spannbereich)
0.094 ˝
2.4 mm
Katalog_CCTWS
224028
Head length top (including cutting edge) (l3)
0.906 ˝
23 mm
tool-application
static
machining-direction-sap
left
us-cutting
No
Total length (including cutting insert) (l1)
3.937 ˝
100 mm
Adjustment dimension cutting center (f1)
0.035 ˝
0.9 mm
Shank height (h)
0.472 ˝
12 mm
length-overall-met
3.937 ˝
100 mm
Maximum insertion depth (tmax)
0.413 ˝
10.5 mm
Maximum workpiece diameter (Dmax)
0.827 ˝
21 mm
Peak height (h1)
0.472 ˝
12 mm
Shank width (b)
0.472 ˝
12 mm
