LH.1R4.1420.0.A.32
Material number LH1R414200A32

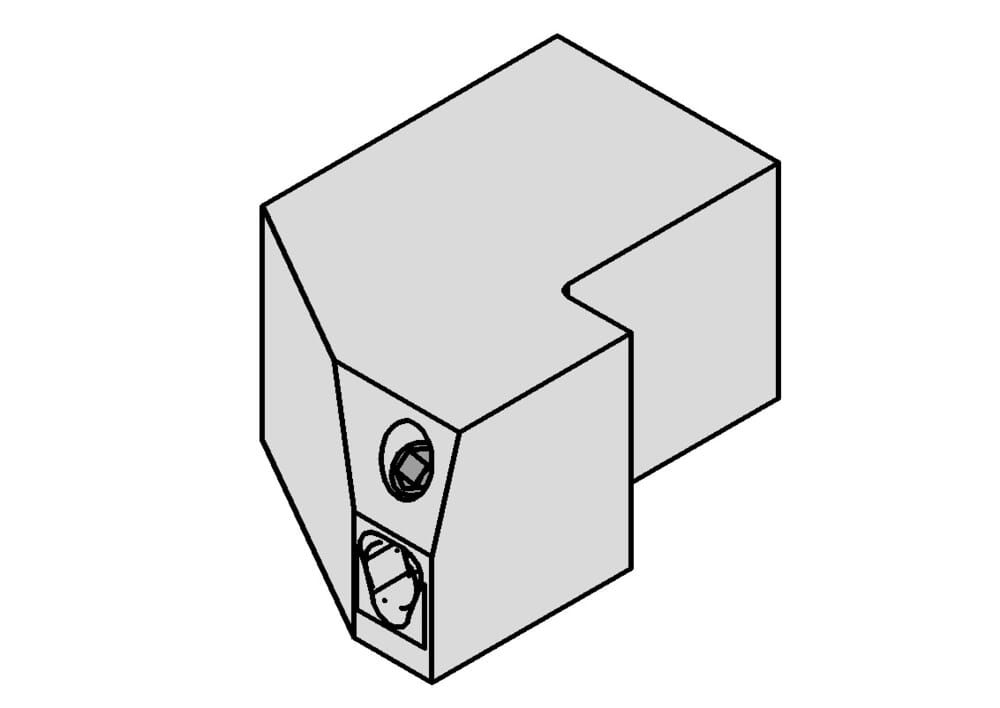

HORN Toolholder LH.1R4.1420.0.A.32 for Turning

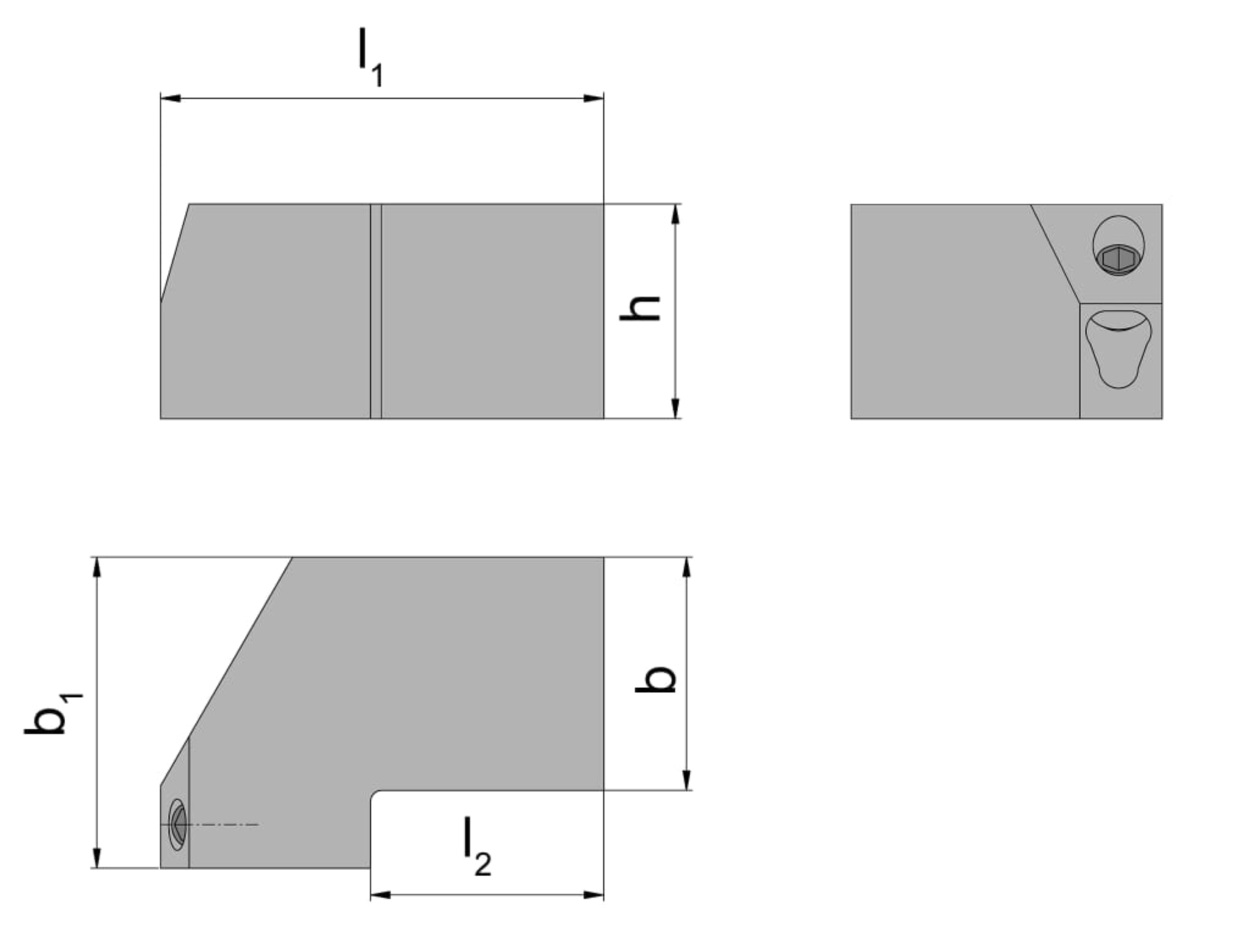

Shank width (b)
0.591 ˝
15 mm
us-cutting
No
tool-application
static
machining-direction-sap
left
Katalog_CCTWS
1R402
Shank height (h)
0.543 ˝
13.8 mm
Total length (without cutting insert) (l1)
1.122 ˝
28.5 mm
Total width (b1)
0.787
20
Length (l2)
0.591 ˝
15 mm
| Downloads | |
|---|---|
| LH_1R4_1420_0_A_32-DXF.DXF | Download |
| LH_1R4_1420_0_A_32-STP.STP | Download |
| LH_1R4_1420_0_A_32-ISO.XML | Download |
| LH_1R4_1420_0_A_32-DIN.XML | Download |
| Download all files | |
