LH105.1212.01
Material number LH105121201

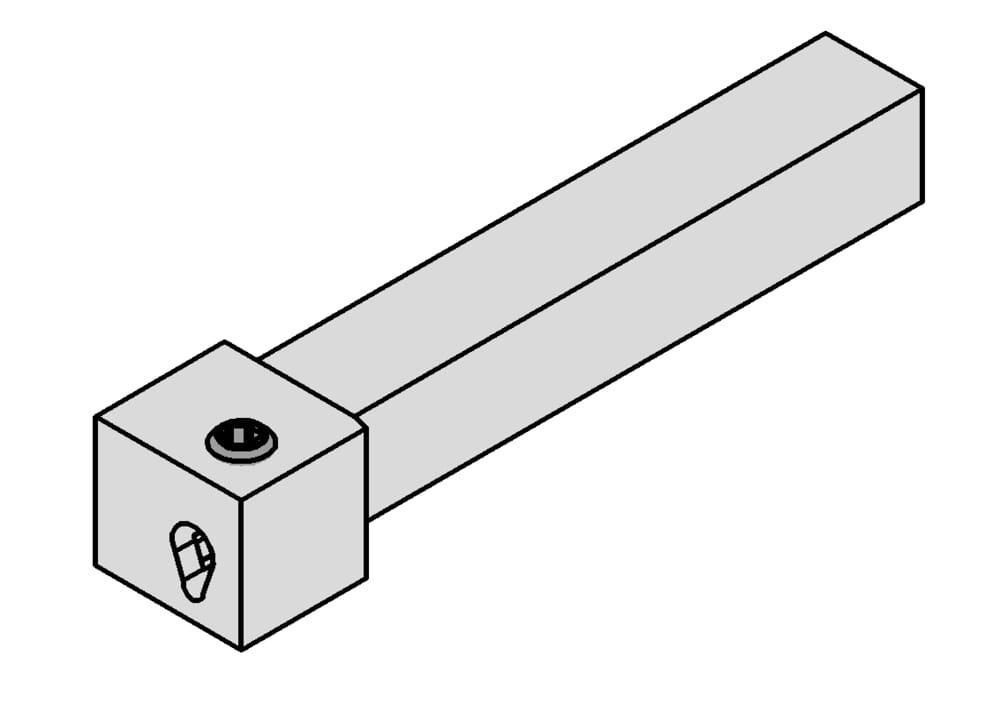

HORN Toolholders LH105.1212.01 for Turning
length-overall-imp
3.543 ˝
90 mm
us-cutting
No
tool-application
static
machining-direction-sap
left
Katalog_CCTWS
105123;105124;105125
Peak height (h1)
0.472 ˝
12 mm
Shank width (b)
0.472 ˝
12 mm
Head length (l2)
0.669 ˝
17 mm
Head height (HK)
0.709 ˝
18 mm
Head width (b1)
0.63 ˝
16 mm
Shank height (h)
0.472 ˝
12 mm
Total length (without cutting insert) (l1)
3.543 ˝
90 mm
Adjustment dimension (f1)
0.295 ˝
7.5 mm
| Downloads | |
|---|---|
| LH105_1212_01-DXF.DXF | Download |
| LH105_1212_01-STP.STP | Download |
| LH105_1212_01-ISO.XML | Download |
| LH105_1212_01-DIN.XML | Download |
| Download all files | |
