LH105.1010.01
Material number LH105101001

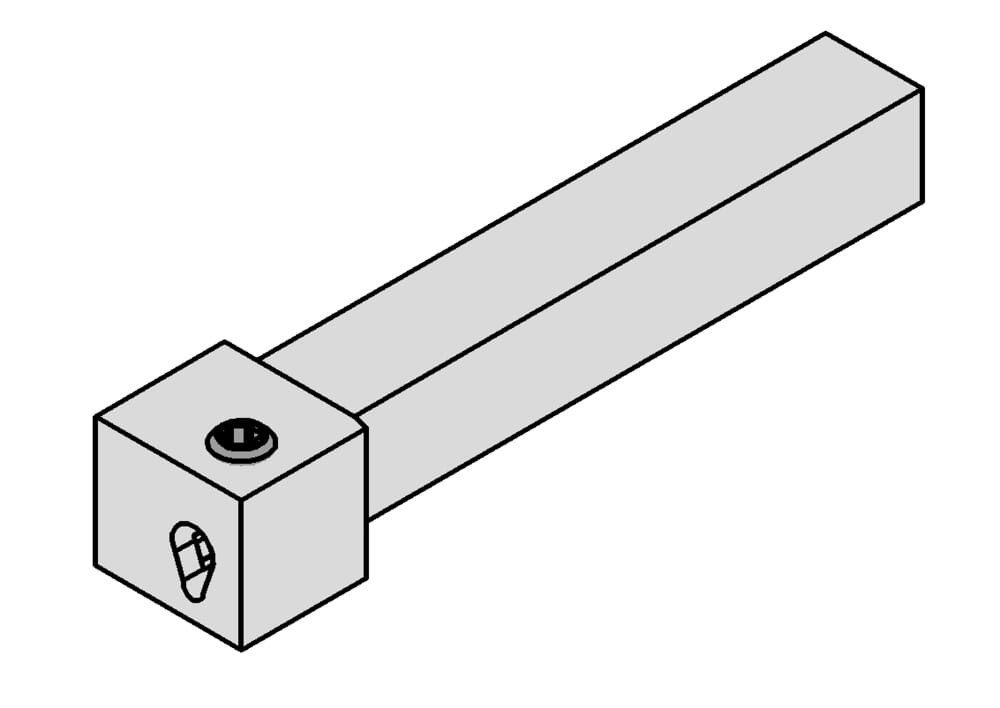

HORN Toolholders LH105.1010.01 for Turning
Head length (l2)
0.669 ˝
17 mm
machining-direction-sap
left
tool-application
static
Katalog_CCTWS
105123;105124;105125
Peak height (h1)
0.394 ˝
10 mm
length-overall-imp
3.543 ˝
90 mm
Shank width (b)
0.394 ˝
10 mm
Head height (HK)
0.63 ˝
16 mm
Head width (b1)
0.63 ˝
16 mm
Shank height (h)
0.394 ˝
10 mm
Total length (without cutting insert) (l1)
3.543 ˝
90 mm
Adjustment dimension (f1)
0.295 ˝
7.5 mm
