LH100.3232.5.16
Material number LH1003232516

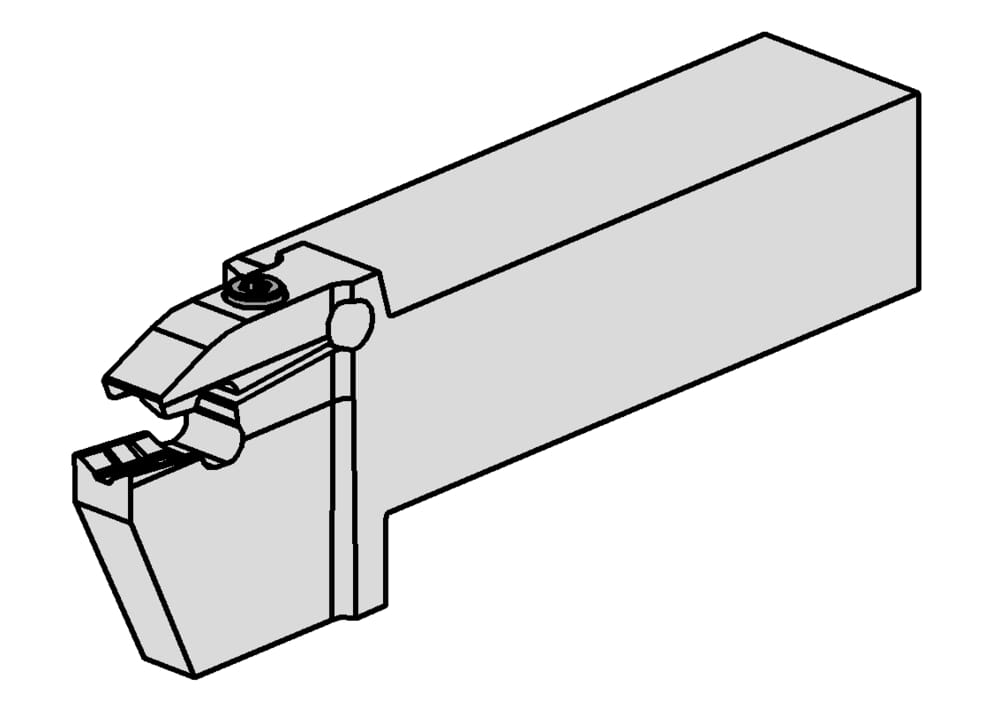

HORN Toolholder LH100.3232.5.16 for Turning
Peak height (h1)
1.85 ˝
47 mm
machining-direction-sap
left
tool-application
static
Adjustment dimension (formula) (f)
f1+w/2
Katalog_CCTWS
100168
Head length (including cutting edge) (l2)
2.165 ˝
55 mm
Shank width (b)
1.26 ˝
32 mm
Maximum insertion depth (tmax)
1.772 ˝
45 mm
length-overall-imp
6.693 ˝
170 mm
Head length (including cutting edge) (l3)
2.205 ˝
56 mm
Shank height (h)
1.26 ˝
32 mm
Total length (including cutting insert) (l1)
6.693 ˝
170 mm
Adjustment dimension cutting center (f1)
0.965 ˝
24.5 mm
