LH100.3225.3.08
Material number LH1003225308

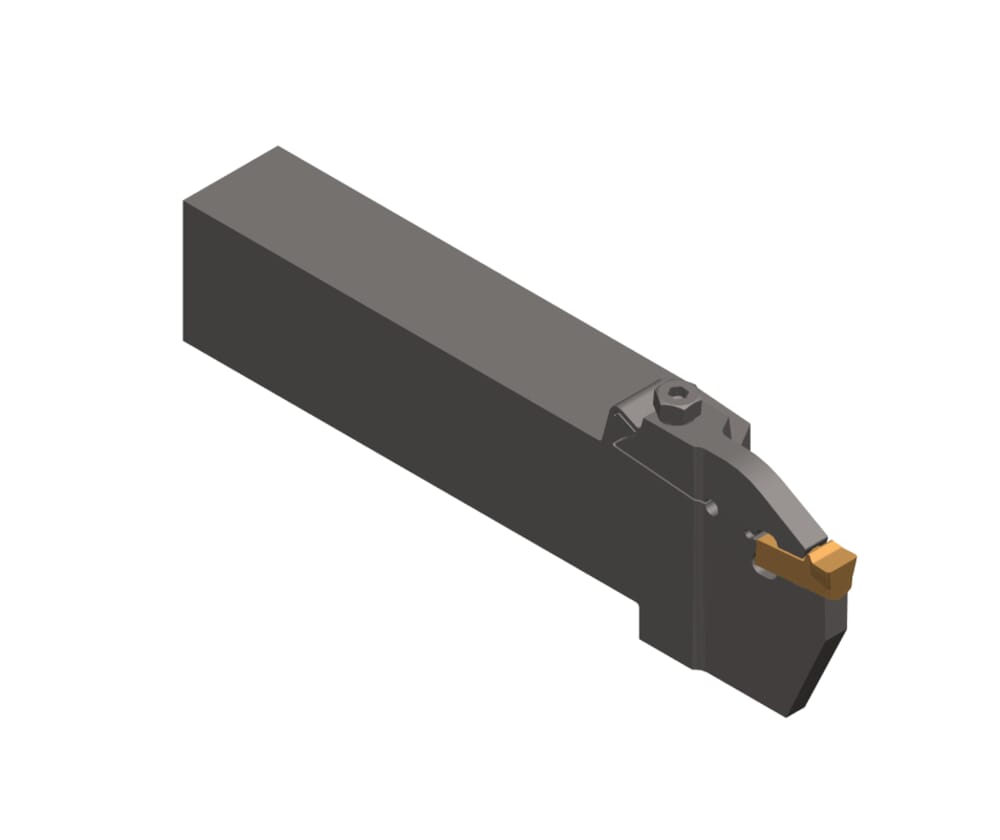

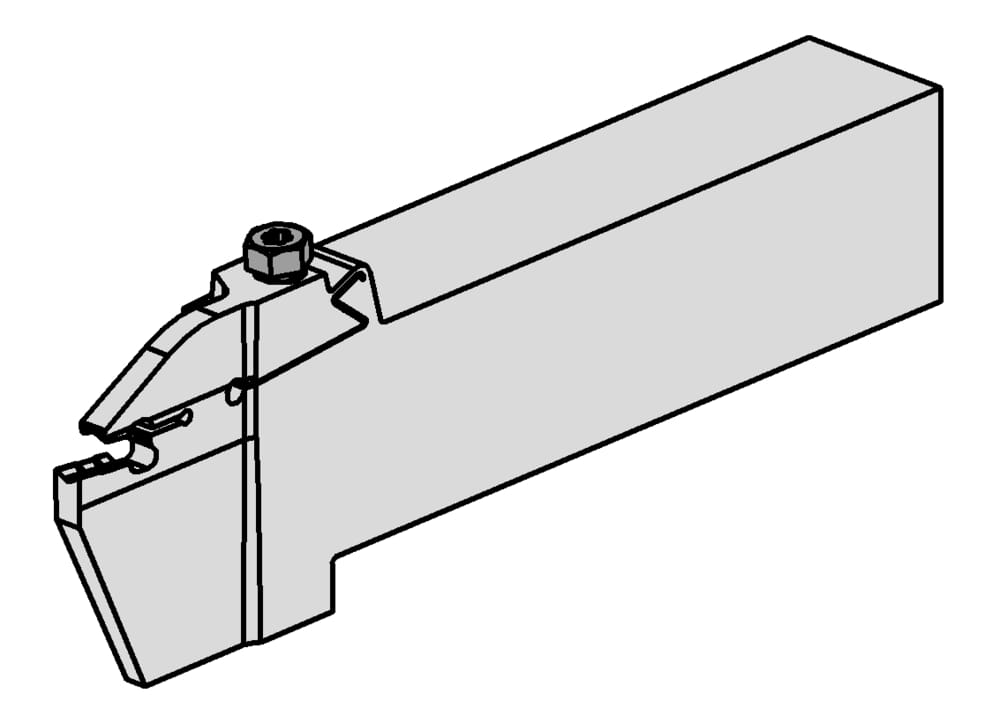

HORN Toolholder LH100.3225.3.08 for Turning
Head length top (including cutting edge) (l3)
2.362 ˝
60 mm
Katalog_CCTWS
100088
Adjustment dimension (formula) (f)
f1+w/2
tool-application
static
machining-direction-sap
left
us-cutting
No
Shank width (b)
0.984 ˝
25 mm
Head length (including cutting edge) (l2)
1.969 ˝
50 mm
Peak height (h1)
1.575 ˝
40 mm
Maximum insertion depth (tmax)
1.299 ˝
33 mm
length-overall-imp
6.693 ˝
170 mm
Shank height (h)
1.26 ˝
32 mm
Total length (including cutting insert) (l1)
6.693 ˝
170 mm
Adjustment dimension cutting center (f1)
0.835 ˝
21.2 mm
| Downloads | |
|---|---|
| LH100_3225_3_08-STP.STP | Download |
| LH100_3225_3_08-ISO.XML | Download |
| LH100_3225_3_08-DIN.XML | Download |
| LH100_3225_3_08-DXF.DXF | Download |
| Download all files | |
