LH100.3208.84L
Material number LH100320884L

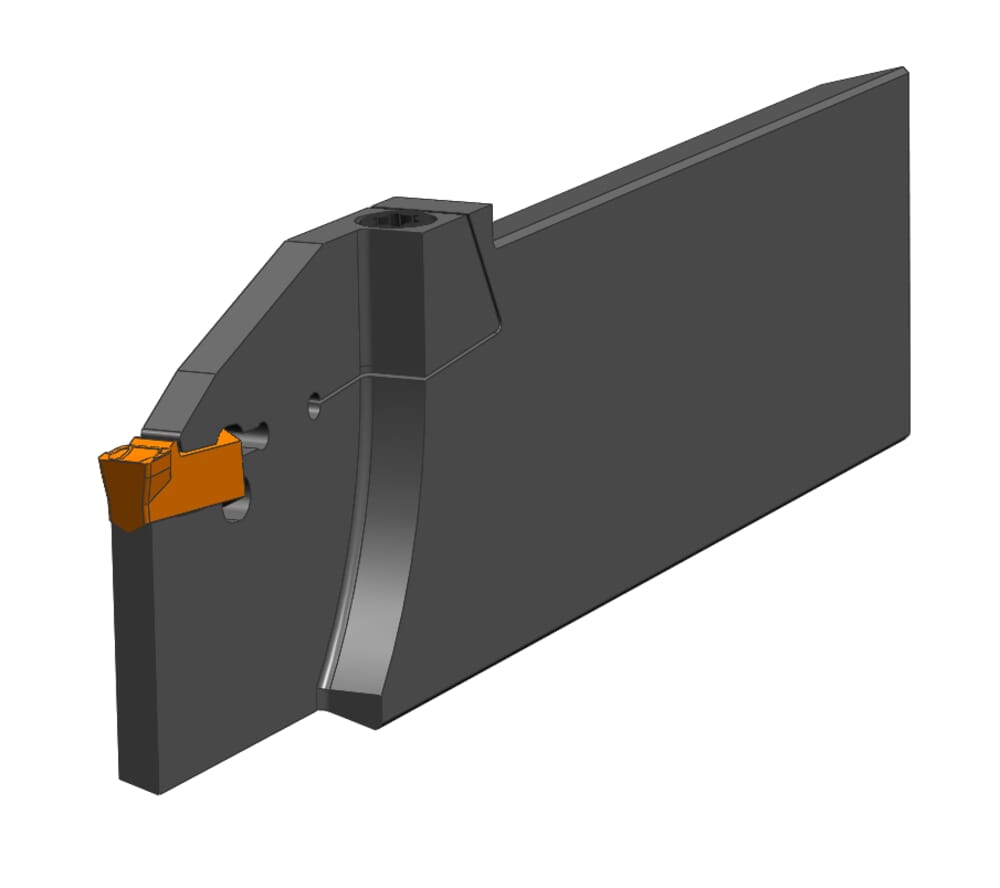

HORN Toolholder LH100.3208.84L for Turning
Head length top (including cutting edge) (l3)
1.85 ˝
47 mm
tool-application
static
machining-direction-sap
left
Katalog_CCTWS
100048
Width / thickness sword (b)
0.315 ˝
8 mm
Peak height (h1)
0.976 ˝
24.8 mm
Maximum workpiece diameter (Dmax)
2.559 ˝
65 mm
Maximum insertion depth (tmax)
1.319 ˝
33.5 mm
Head height (h)
1.26 ˝
32 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Adjustment dimension (f1)
0.256 ˝
6.5 mm
