LH100.3208.71
Material number LH100320871

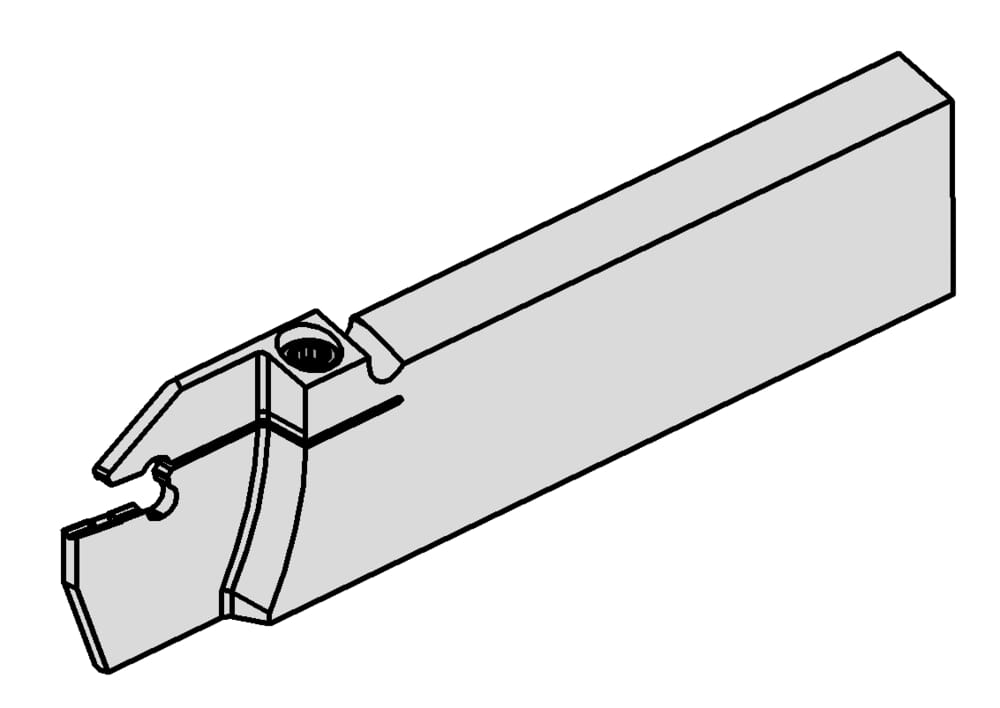

HORN Toolholders LH100.3208.71 for Turning
Head length top (including cutting edge) (l3)
1.331 ˝
33.8 mm
us-cutting
No
tool-application
static
machining-direction-sap
left
Katalog_CCTWS
100018
Width / thickness sword (b)
0.311 ˝
7.9 mm
Peak height (h1)
0.976 ˝
24.8 mm
Maximum workpiece diameter (Dmax)
1.969 ˝
50 mm
Maximum insertion depth (tmax)
0.984 ˝
25 mm
Head height (h)
1.26 ˝
32 mm
Total length (including cutting insert) (l1)
4.409 ˝
112 mm
Adjustment dimension (f1)
0.03 ˝
0.75 mm
| Downloads | |
|---|---|
| LH100_3208_71-DXF.DXF | Download |
| LH100_3208_71-STP.STP | Download |
| LH100_3208_71-ISO.XML | Download |
| LH100_3208_71-DIN.XML | Download |
