LH100.3208.34.4.73L.IK

Material number LH100320834473LIK

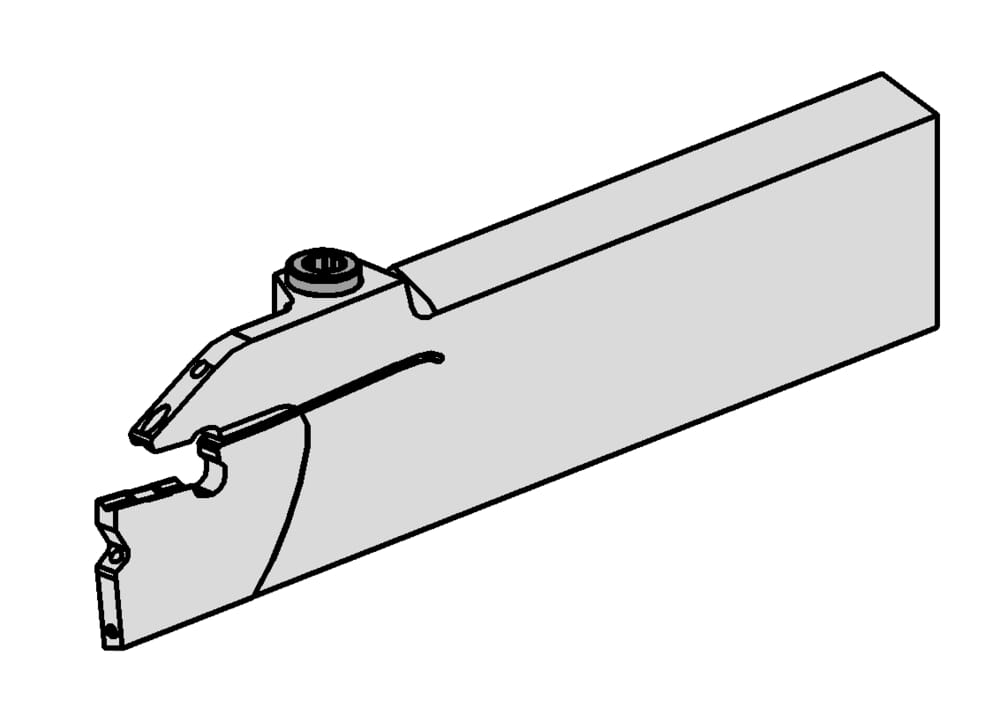

HORN Toolholder LH100.3208.34.4.73L.IK for Turning

Head length top (including cutting edge) (l3)

1.89 ˝

48 mm

us-cutting

tool-application

static

machining-direction-sap

left

Katalog_CCTWS

100038

Width / thickness sword (b)

0.311 ˝

7.9 mm

Peak height (h1)

0.976 ˝

24.8 mm

Maximum workpiece diameter (Dmax)

2.677 ˝

68 mm

Maximum insertion depth (tmax)

1.339 ˝

34 mm

Head height (h)

1.26 ˝

32 mm

Total length (including cutting insert) (l1)

4.331 ˝

110 mm

Adjustment dimension (f1)

0.258 ˝

6.55 mm
