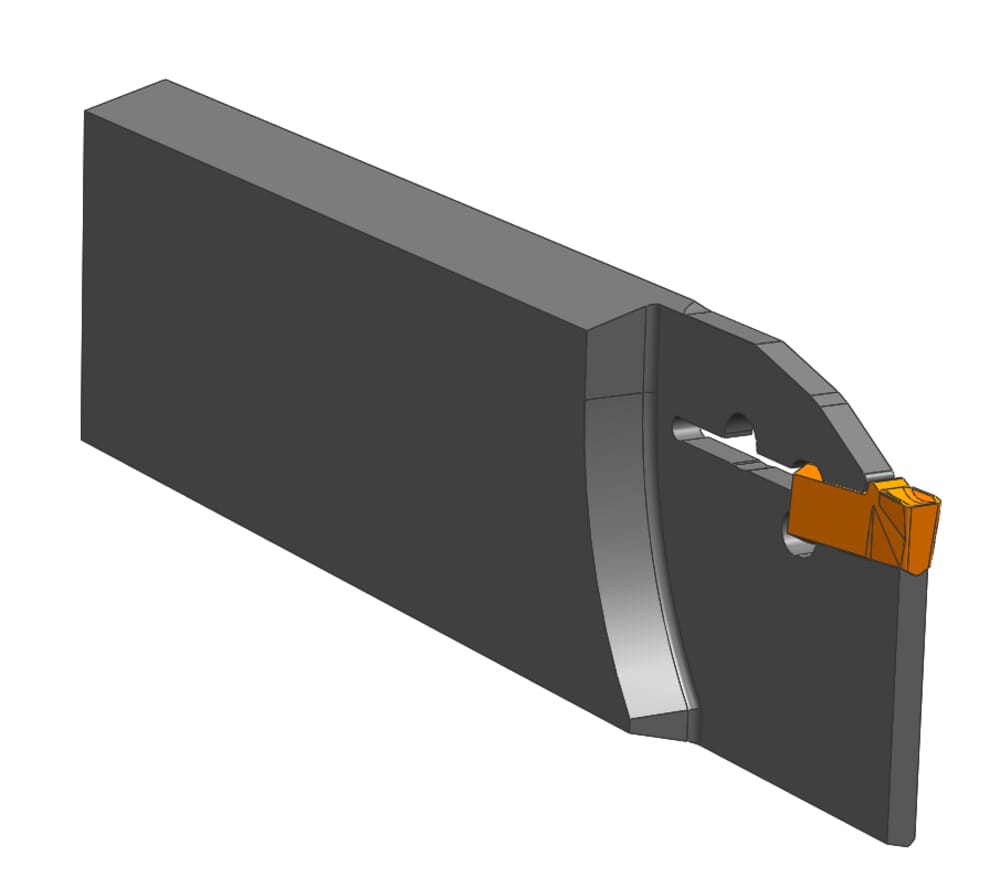

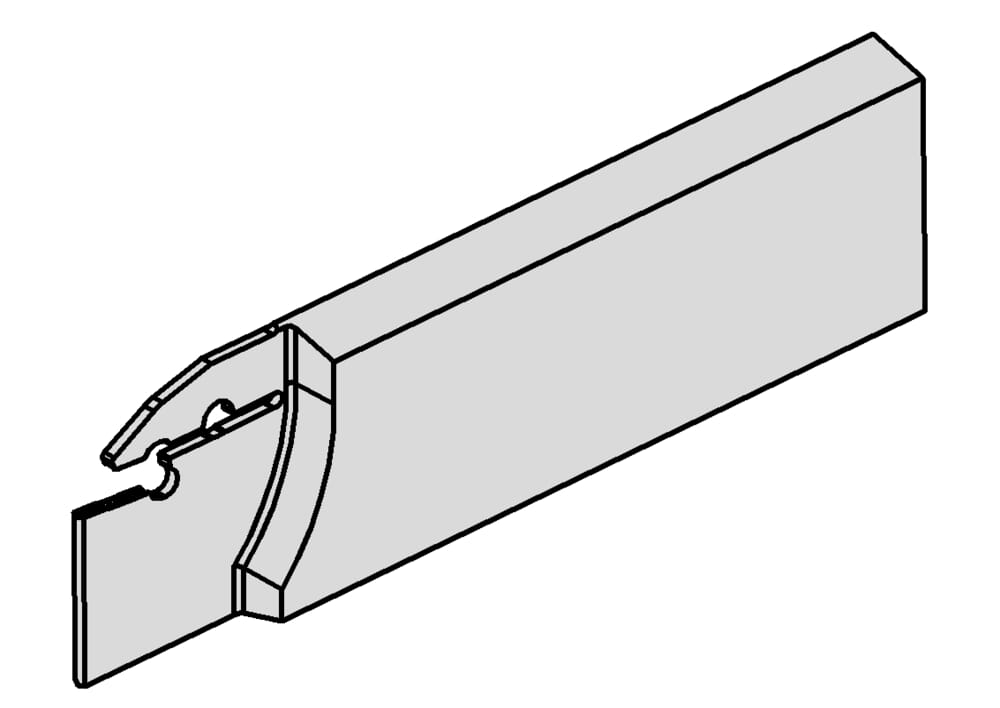

LH100.3208.33
Material number LH100320833
HORN Toolholders LH100.3208.33 for Turning
us-cutting
No
tool-application
static
machining-direction-sap
left
Katalog_CCTWS
100038
Width / thickness sword (b)
0.311 ˝
7.9 mm
Peak height (h1)
0.976 ˝
24.8 mm
Maximum workpiece diameter (Dmax)
2.677 ˝
68 mm
Maximum insertion depth (tmax)
1.339 ˝
34 mm
Head height (h)
1.26 ˝
32 mm
Total length (including cutting insert) (l1)
4.409 ˝
112 mm
Adjustment dimension (f1)
0.045 ˝
1.15 mm
