LH100.2525.73
Material number LH100252573

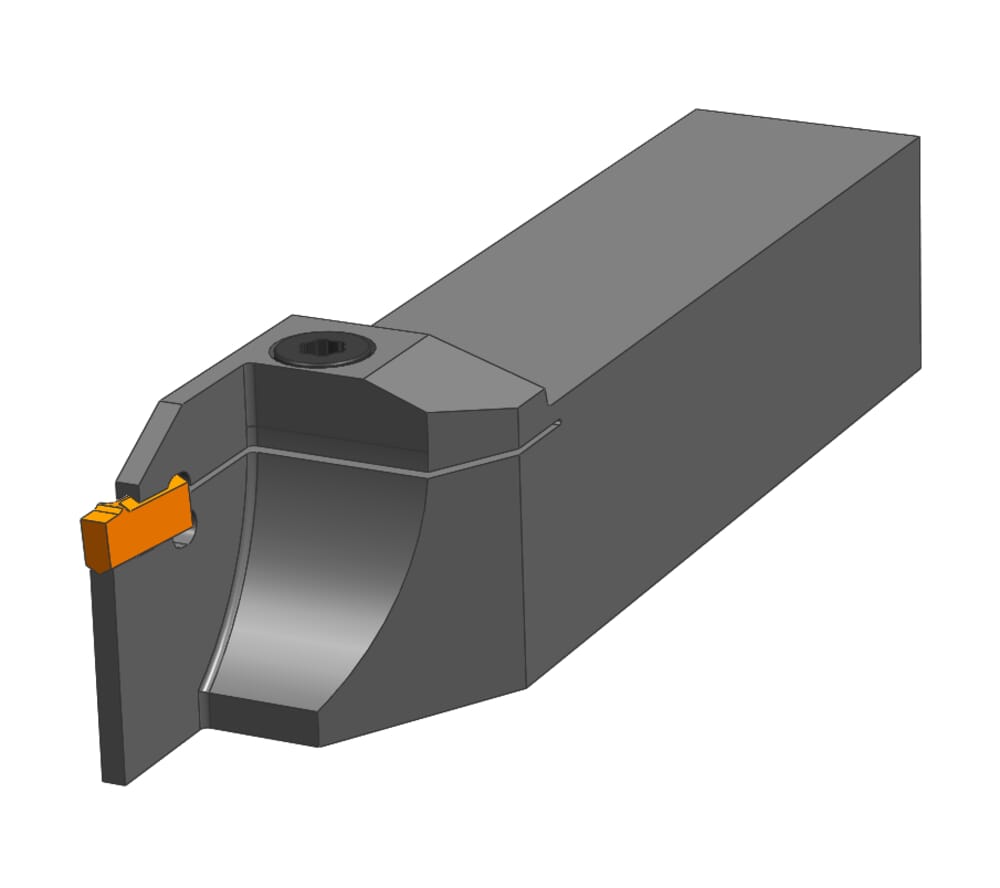

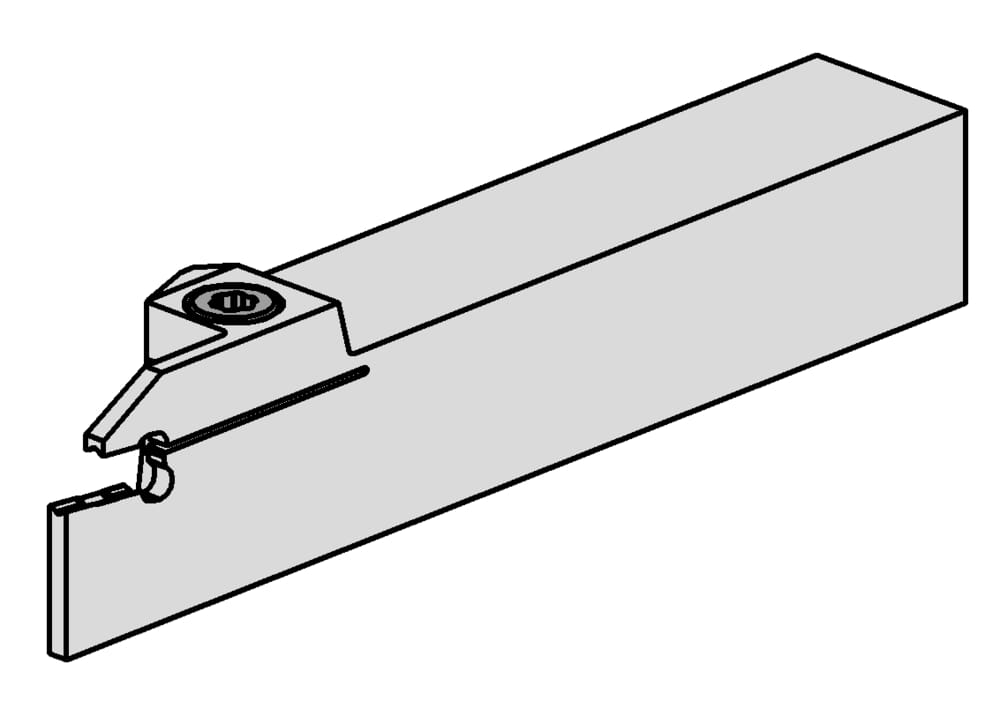

HORN Toolholder LH100.2525.73 for Turning
Adjustment dimension (formula) (f)
f1+w/2
Head length top (including cutting edge) (l3)
1.575 ˝
40 mm
Katalog_CCTWS
100038
Peak height (h1)
0.984 ˝
25 mm
machining-direction-sap
left
tool-application
static
us-cutting
No
Shank width (b)
0.984 ˝
25 mm
Adjustment dimension cutting center (f1)
0.939 ˝
23.85 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Shank height (h)
0.984 ˝
25 mm
Head height (HK)
1.22 ˝
31 mm
length-overall-met
5.906 ˝
150 mm
Maximum insertion depth (tmax)
0.984 ˝
25 mm
Maximum workpiece diameter (Dmax)
1.969 ˝
50 mm
