LH100.2525.4.12
Material number LH1002525412

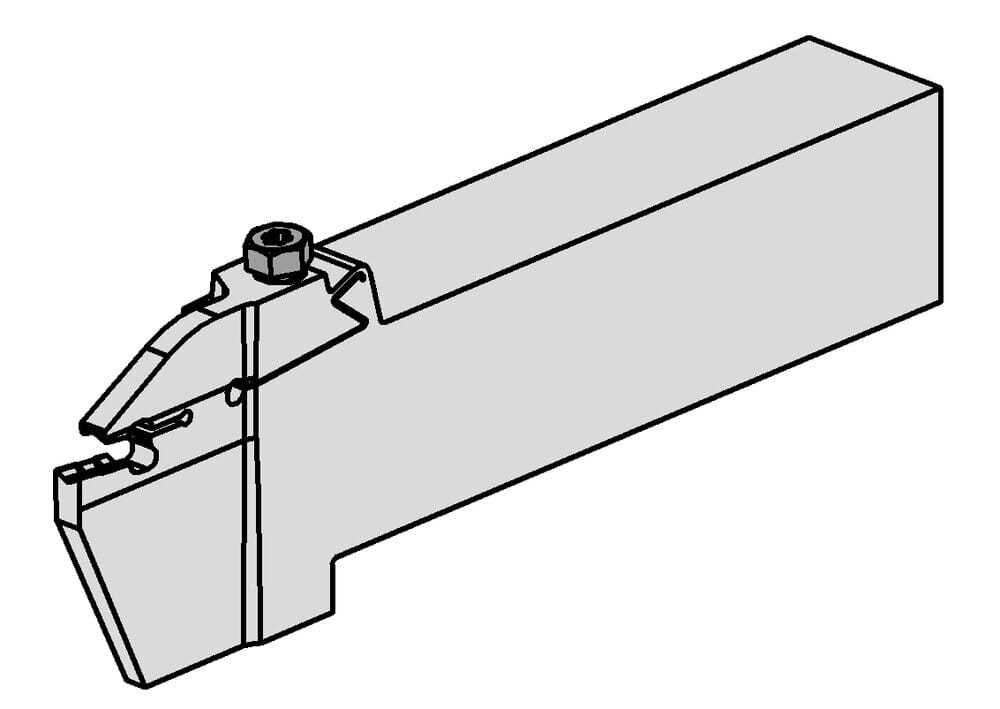

HORN Toolholder LH100.2525.4.12 for Turning
Head length top (including cutting edge) (l3)
2.559 ˝
65 mm
Katalog_CCTWS
100028
Adjustment dimension (formula) (f)
f1+w/2
machining-direction-sap
left
tool-application
static
us-cutting
No
Shank width (b)
0.984 ˝
25 mm
Head length (including cutting edge) (l2)
2.165 ˝
55 mm
Peak height (h1)
1.575 ˝
40 mm
Maximum insertion depth (tmax)
1.614 ˝
41 mm
length-overall-imp
6.693 ˝
170 mm
Shank height (h)
0.984 ˝
25 mm
Total length (including cutting insert) (l1)
6.693 ˝
170 mm
Adjustment dimension cutting center (f1)
0.76 ˝
19.3 mm
