LH100.2525.35
Material number LH100252535

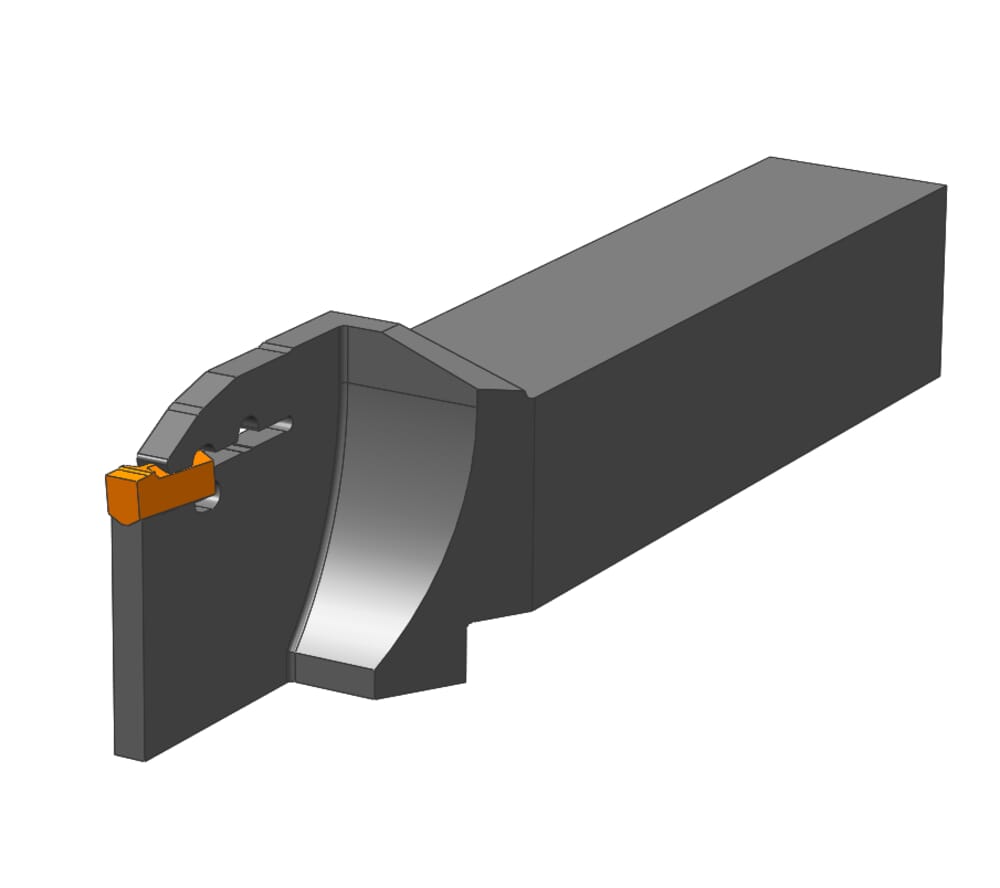

HORN Toolholders LH100.2525.35 for Turning
Head length top (including cutting edge) (l3)
1.831 ˝
46.5 mm
Head length bottom without insert (l2)
1.575 ˝
40 mm
Katalog_CCTWS
100058
Peak height (h1)
1.26 ˝
32 mm
Adjustment dimension (formula) (f)
f1+w/2
tool-application
static
machining-direction-sap
left
Shank width (b)
0.984 ˝
25 mm
Adjustment dimension cutting center (f1)
0.907 ˝
23.05 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Shank height (h)
0.984 ˝
25 mm
Head height (HK)
1.52 ˝
38.6 mm
length-overall-met
5.906 ˝
150 mm
Maximum insertion depth (tmax)
1.594 ˝
40.5 mm
Maximum workpiece diameter (Dmax)
3.189 ˝
81 mm
