LH100.2525.2.73.IK
Material number LH1002525273IK

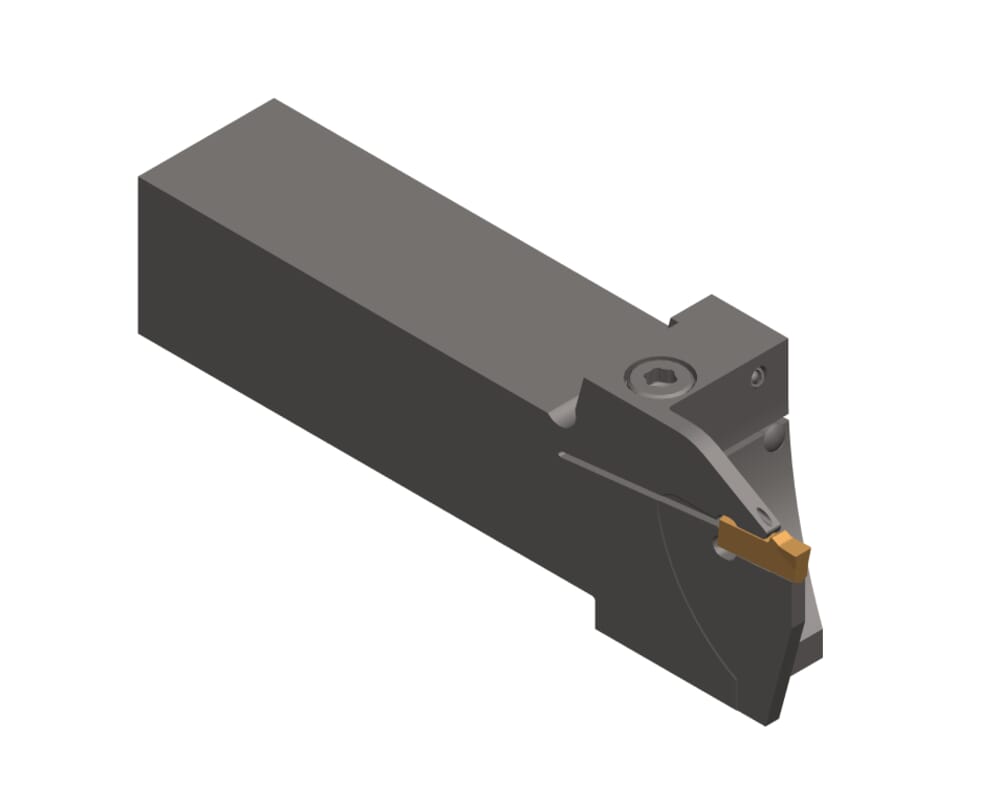

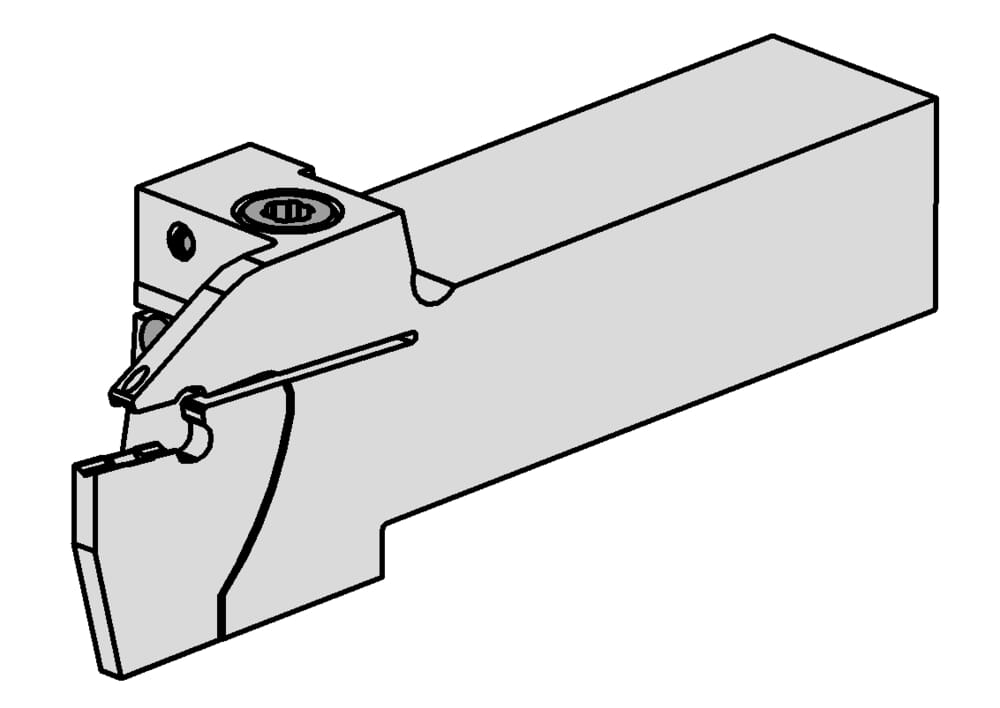

HORN Toolholder LH100.2525.2.73.IK for Turning
Adjustment dimension (formula) (f)
f1+w/2
Head length top (including cutting edge) (l3)
1.693 ˝
43 mm
Katalog_CCTWS
100038
Head length (including cutting edge) (l2)
1.457 ˝
37 mm
machining-direction-sap
left
tool-application
static
us-cutting
No
Adjustment dimension cutting center (f1)
0.931 ˝
23.65 mm
Total length (including cutting insert) (l1)
4.764 ˝
121 mm
Shank height (h)
0.984 ˝
25 mm
length-overall-met
4.764 ˝
121 mm
Maximum insertion depth (tmax)
1.004 ˝
25.5 mm
workpiece-diameter-max-met
1.969 ˝
50 mm
Peak height (h1)
1.181 ˝
30 mm
Shank width (b)
0.984 ˝
25 mm
head-length-imp
1.693 ˝
| Downloads | |
|---|---|
| LH100_2525_2_73_IK-DXF.DXF | Download |
| LH100_2525_2_73_IK-STP.STP | Download |
| LH100_2525_2_73_IK-ISO.XML | Download |
| LH100_2525_2_73_IK-DIN.XML | Download |
| Download all files | |
