LH100.2525.1.33.IK
Material number LH1002525133IK

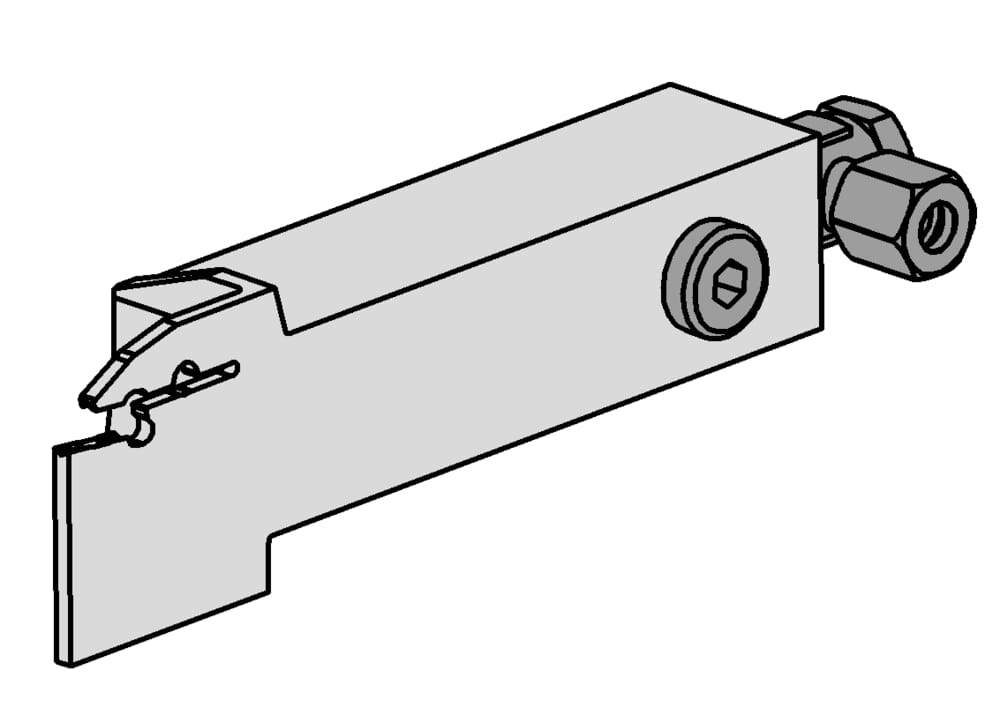

HORN Toolholder LH100.2525.1.33.IK for Turning
Adjustment dimension (formula) (f)
f1+w/2
Head length (including cutting edge) (l2)
1.378 ˝
35 mm
Head length top (including cutting edge) (l3)
1.516 ˝
38.5 mm
Katalog_CCTWS
100039
machining-direction-sap
left
tool-application
static
us-cutting
No
Adjustment dimension cutting center (f1)
0.939 ˝
23.85 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Shank height (h)
0.984 ˝
25 mm
Head height (HK)
1.52 ˝
38.6 mm
length-overall-met
5.906 ˝
150 mm
Maximum insertion depth (tmax)
1.299 ˝
33 mm
Maximum workpiece diameter (Dmax)
2.559 ˝
65 mm
Peak height (h1)
1.26 ˝
32 mm
Shank width (b)
0.984 ˝
25 mm
head-length-imp
1.516 ˝
| Downloads | |
|---|---|
| LH100_2525_1_33_IK-DXF.DXF | Download |
| LH100_2525_1_33_IK-STP.STP | Download |
| LH100_2525_1_33_IK-ISO.XML | Download |
| LH100_2525_1_33_IK-DIN.XML | Download |
| Download all files | |
