LH100.2525.0.74.IK
Material number LH1002525074IK

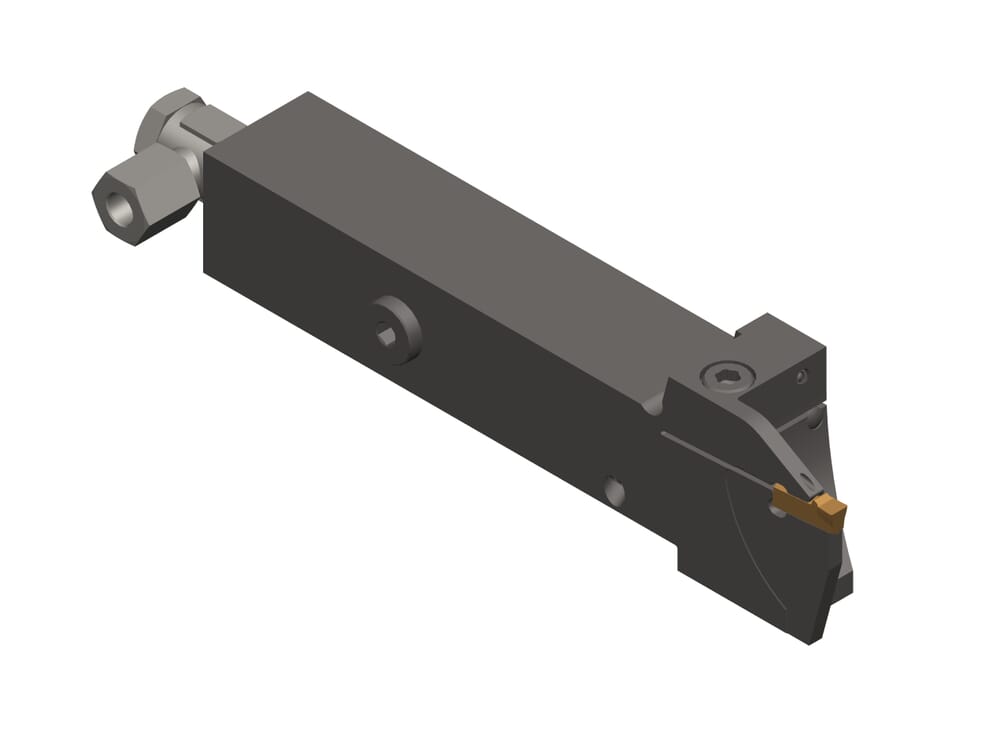

HORN Toolholder LH100.2525.0.74.IK for Turning
Head length (including cutting edge) (l2)
1.457 ˝
37 mm
Head length top (including cutting edge) (l3)
1.693 ˝
43 mm
Katalog_CCTWS
100048
Adjustment dimension (formula) (f)
f1+w/2
tool-application
static
machining-direction-sap
left
Adjustment dimension cutting center (f1)
0.917 ˝
23.3 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Shank height (h)
0.984 ˝
25 mm
length-overall-met
5.906 ˝
150 mm
Maximum insertion depth (tmax)
1.004 ˝
25.5 mm
Maximum workpiece diameter (Dmax)
1.969 ˝
50 mm
Peak height (h1)
1.181 ˝
30 mm
Shank width (b)
0.984 ˝
25 mm
head-length-imp
1.693 ˝
