LH100.2525.0.24.IK
Material number LH1002525024IK

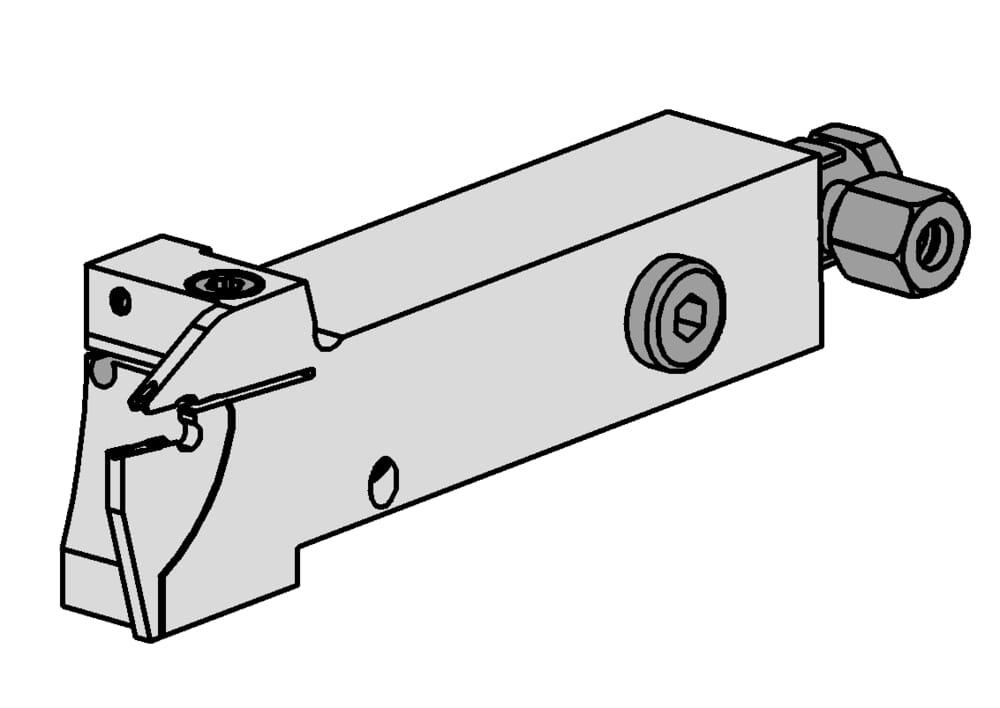

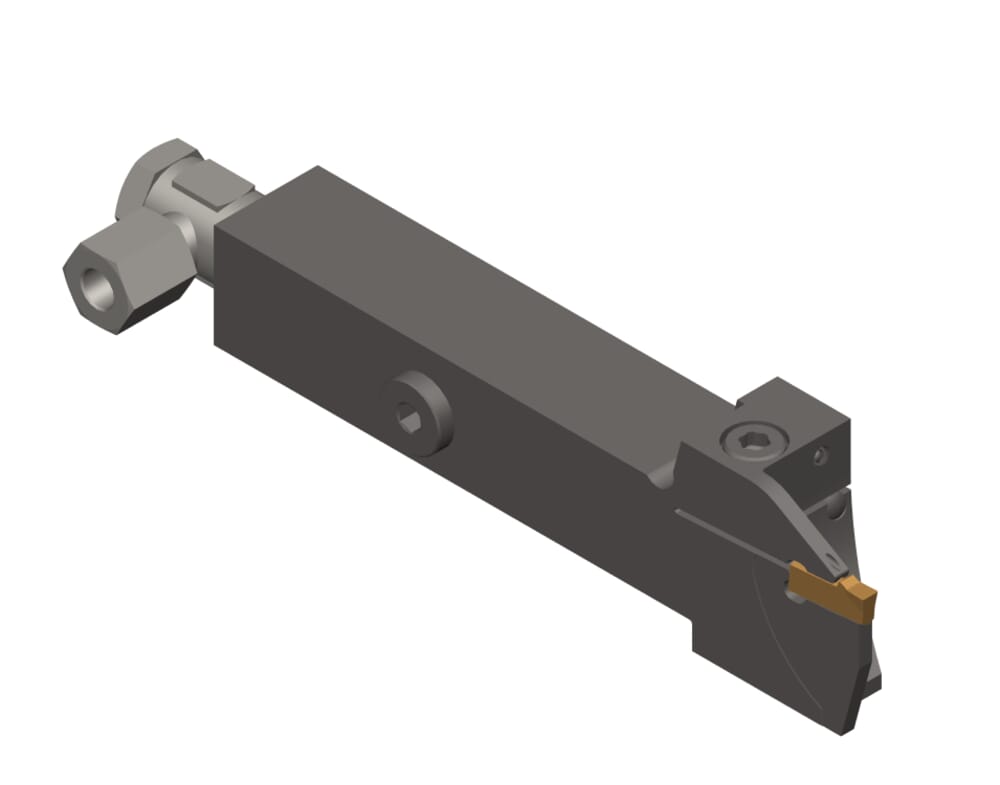

HORN Toolholder LH100.2525.0.24.IK for Turning
Adjustment dimension (formula) (f)
f1+w/2
Head length top (including cutting edge) (l3)
1.535 ˝
39 mm
Katalog_CCTWS
100048
Head length (including cutting edge) (l2)
1.299 ˝
33 mm
machining-direction-sap
left
tool-application
static
us-cutting
No
Adjustment dimension cutting center (f1)
0.917 ˝
23.3 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Shank height (h)
0.984 ˝
25 mm
length-overall-met
5.906 ˝
150 mm
Maximum insertion depth (tmax)
0.846 ˝
21.5 mm
Maximum workpiece diameter (Dmax)
1.654 ˝
42 mm
Peak height (h1)
1.181 ˝
30 mm
Shank width (b)
0.984 ˝
25 mm
head-length-imp
1.535 ˝
