LH100.2020.3.22.IK
Material number LH1002020322IK

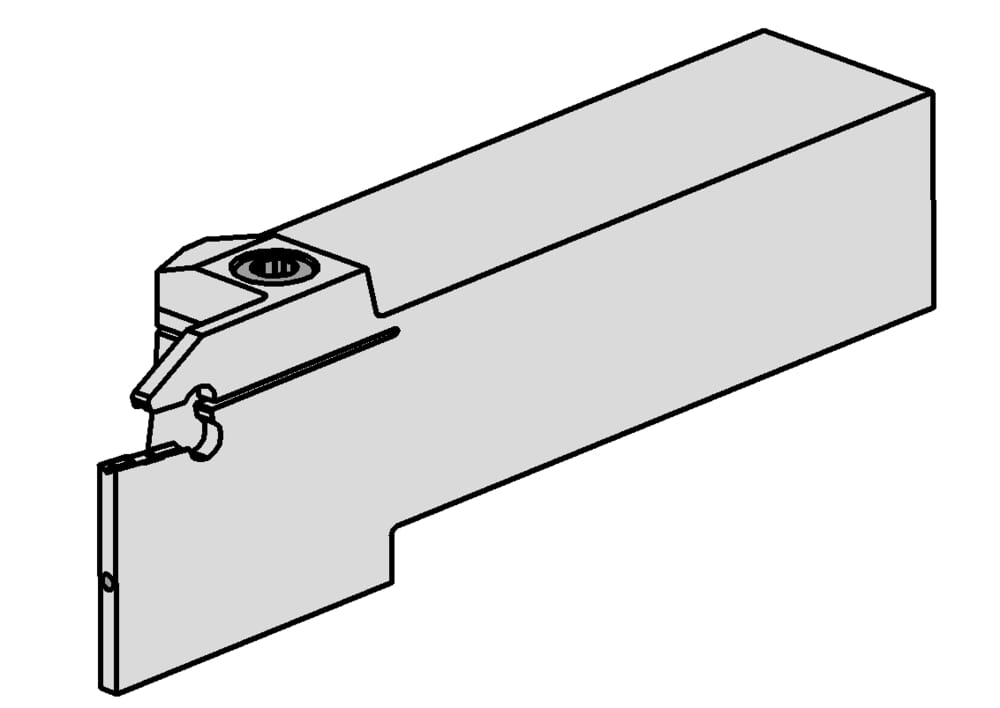

HORN Toolholder LH100.2020.3.22.IK for Turning
Peak height (h1)
0.984 ˝
25 mm
tool-application
static
machining-direction-sap
left
Adjustment dimension (formula) (f)
f1+w/2
Katalog_CCTWS
100029
Head length (including cutting edge) (l2)
1.378 ˝
35 mm
Shank width (b)
0.787 ˝
20 mm
Maximum workpiece diameter (Dmax)
1.654 ˝
42 mm
Maximum insertion depth (tmax)
0.846 ˝
21.5 mm
length-overall-imp
4.016 ˝
102 mm
Shank height (h)
0.787 ˝
20 mm
Total length (including cutting insert) (l1)
4.016 ˝
102 mm
Adjustment dimension cutting center (f1)
0.75 ˝
19.05 mm
| Downloads | |
|---|---|
| LH1002020322IK.DXF | Download |
| LH1002020322IK_20230113_124510416.STP | Download |
| Download all files | |
