LH100.2020.1.33.IK
Material number LH1002020133IK

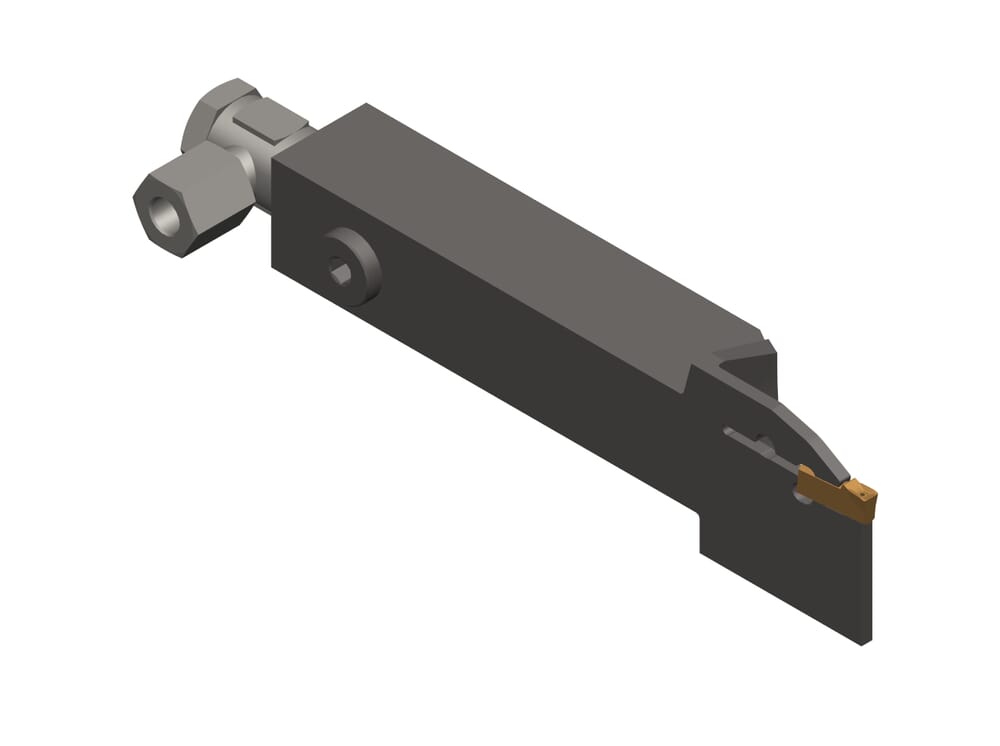

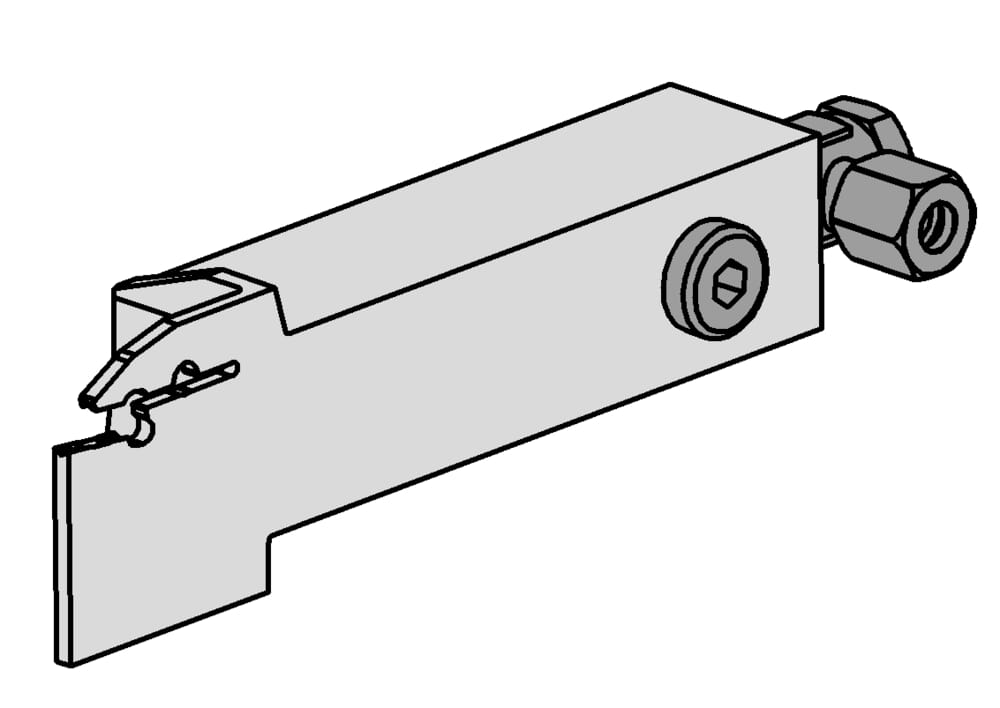

HORN Toolholder LH100.2020.1.33.IK for Turning
Head length (including cutting edge) (l2)
1.378 ˝
35 mm
Head length top (including cutting edge) (l3)
1.516 ˝
38.5 mm
Katalog_CCTWS
100039
Peak height (h1)
1.063 ˝
27 mm
Adjustment dimension (formula) (f)
f1+w/2
machining-direction-sap
left
tool-application
static
Shank width (b)
0.787 ˝
20 mm
Adjustment dimension cutting center (f1)
0.742 ˝
18.85 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Shank height (h)
0.787 ˝
20 mm
Head height (HK)
1.323 ˝
33.6 mm
length-overall-met
4.921 ˝
125 mm
Maximum insertion depth (tmax)
1.299 ˝
33 mm
Maximum workpiece diameter (Dmax)
2.559 ˝
65 mm
head-length-imp
1.516 ˝
| Downloads | |
|---|---|
| LH1002020133IK_20210627_065609927.DXF | Download |
| LH1002020133IK_20230113_124134693.STP | Download |
