LH100.1616.3.22.IK
Material number LH1001616322IK

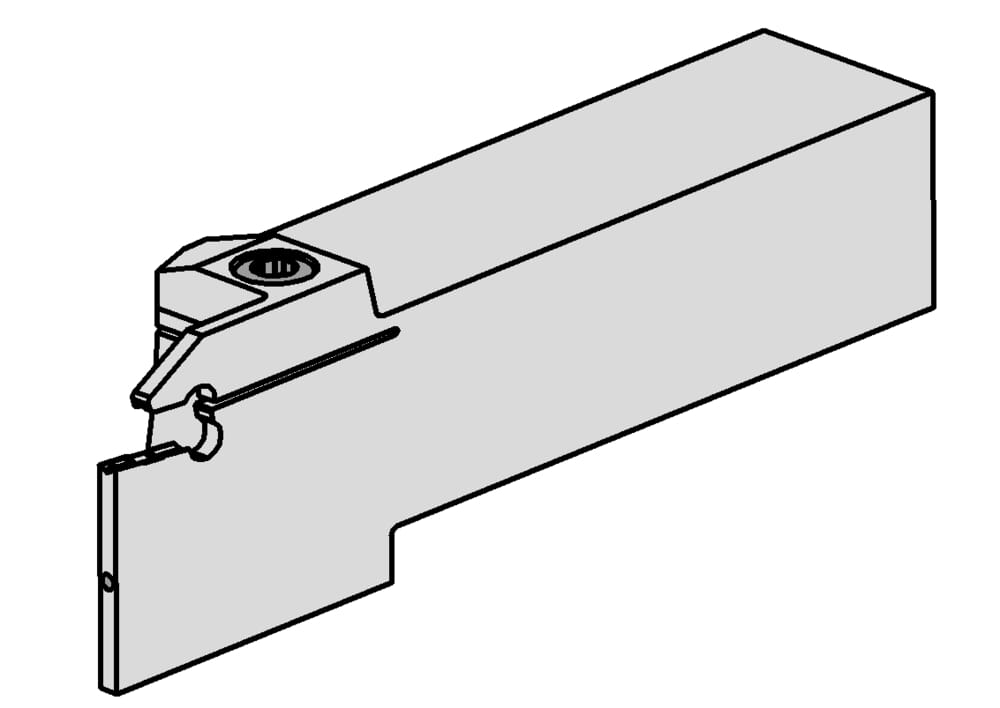

HORN Toolholder LH100.1616.3.22.IK for Turning
Head length (including cutting edge) (l2)
1.378 ˝
35 mm
Katalog_CCTWS
100029
Adjustment dimension (formula) (f)
f1+w/2
machining-direction-sap
left
tool-application
static
us-cutting
No
Shank width (b)
0.63 ˝
16 mm
Peak height (h1)
0.984 ˝
25 mm
Maximum workpiece diameter (Dmax)
1.654 ˝
42 mm
Maximum insertion depth (tmax)
0.846 ˝
21.5 mm
length-overall-imp
3.504 ˝
89 mm
Shank height (h)
0.63 ˝
16 mm
Total length (including cutting insert) (l1)
3.504 ˝
89 mm
Adjustment dimension cutting center (f1)
0.593 ˝
15.05 mm
| Downloads | |
|---|---|
| LH100_1616_3_22_IK-ISO.XML | Download |
| LH100_1616_3_22_IK-DIN.XML | Download |
| LH100_1616_3_22_IK-DXF.DXF | Download |
| LH100_1616_3_22_IK-STP.STP | Download |
| Download all files | |
