LH100.1616.0.24.IK
Material number LH1001616024IK

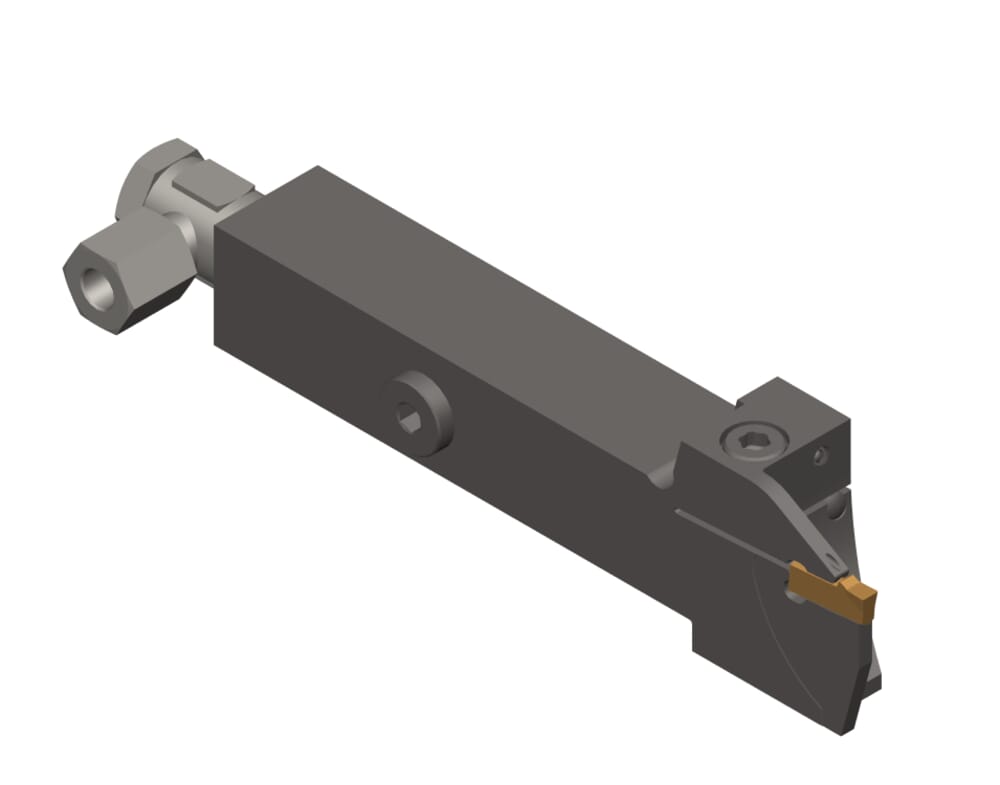

HORN Toolholder LH100.1616.0.24.IK for Turning
Head length (including cutting edge) (l2)
1.378 ˝
35 mm
Head length top (including cutting edge) (l3)
1.535 ˝
39 mm
Katalog_CCTWS
100048
Adjustment dimension (formula) (f)
f1+w/2
tool-application
static
machining-direction-sap
left
Adjustment dimension cutting center (f1)
0.563 ˝
14.3 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Shank height (h)
0.63 ˝
16 mm
length-overall-met
4.921 ˝
125 mm
Maximum insertion depth (tmax)
0.846 ˝
21.5 mm
Maximum workpiece diameter (Dmax)
1.654 ˝
42 mm
Peak height (h1)
0.984 ˝
25 mm
Shank width (b)
0.63 ˝
16 mm
head-length-imp
1.535 ˝
