LH100.1212.03
Material number LH100121203

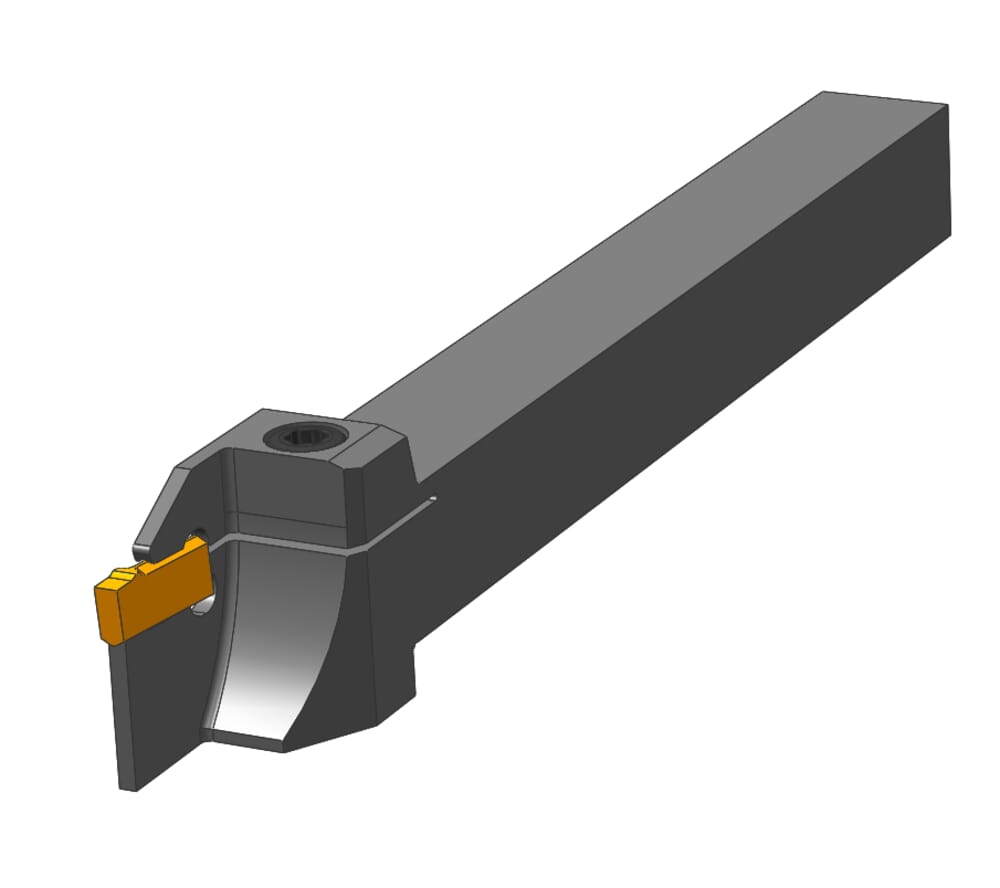

HORN Toolholders LH100.1212.03 for Turning
Head length top (including cutting edge) (l3)
0.906 ˝
23 mm
Head length bottom without insert (l2)
0.827 ˝
21 mm
Katalog_CCTWS
100028
Peak height (h1)
0.63 ˝
16 mm
Adjustment dimension (formula) (f)
f1+w/2
machining-direction-sap
left
tool-application
static
Shank width (b)
0.472 ˝
12 mm
Adjustment dimension cutting center (f1)
0.427 ˝
10.85 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Shank height (h)
0.472 ˝
12 mm
Head height (HK)
0.984 ˝
25 mm
length-overall-met
4.921 ˝
125 mm
Maximum insertion depth (tmax)
0.512 ˝
13 mm
Maximum workpiece diameter (Dmax)
1.024 ˝
26 mm
