L369.A022.18.02
Material number L369A0221802

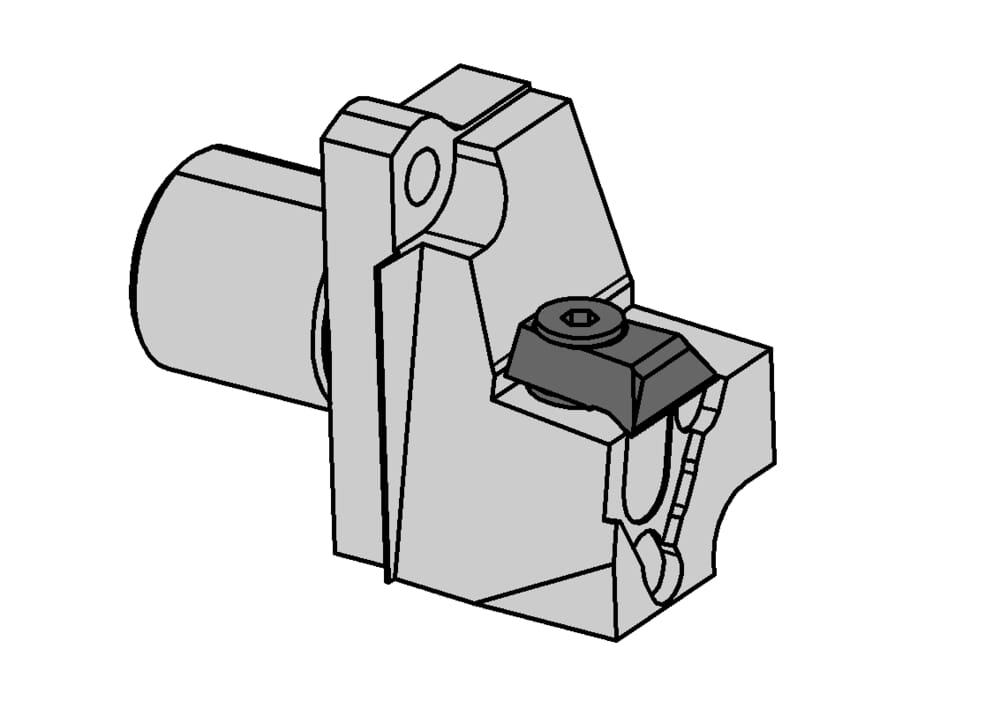

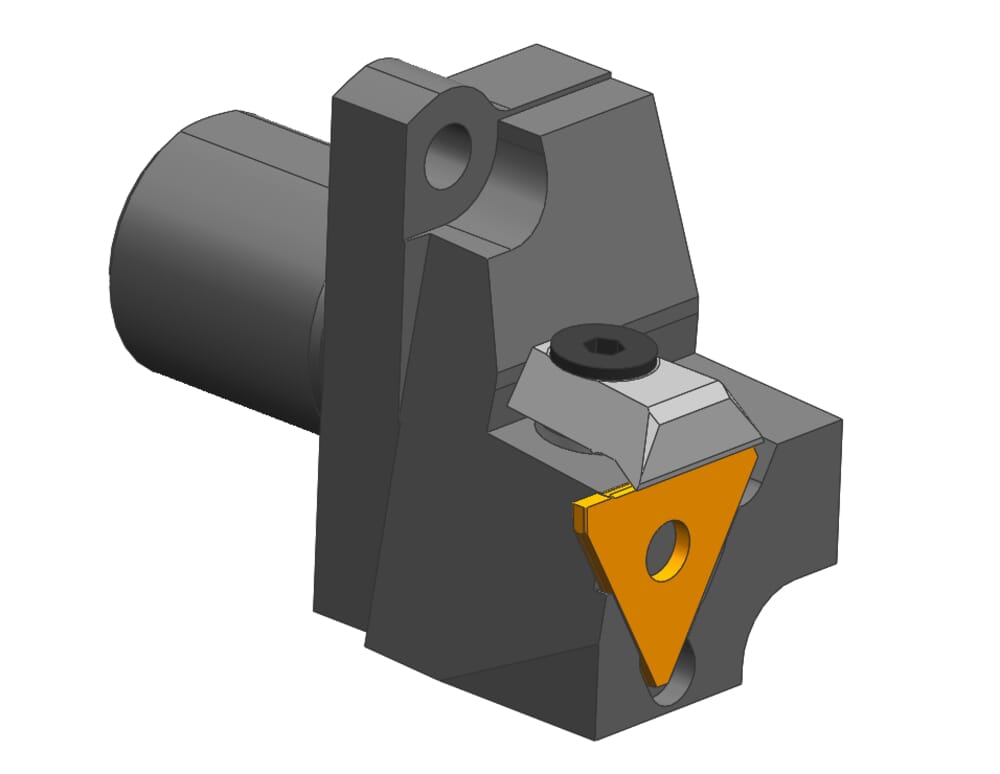

HORN Toolholder L369.A022.18.02 for Turning
Clamping range minimum (Spannbereich)
0.075 ˝
1.9 mm
tool-application
static
machining-direction-sap
left
Katalog_CCTMS
Star
Katalog_CCTWS
31202N;31202R;31202L

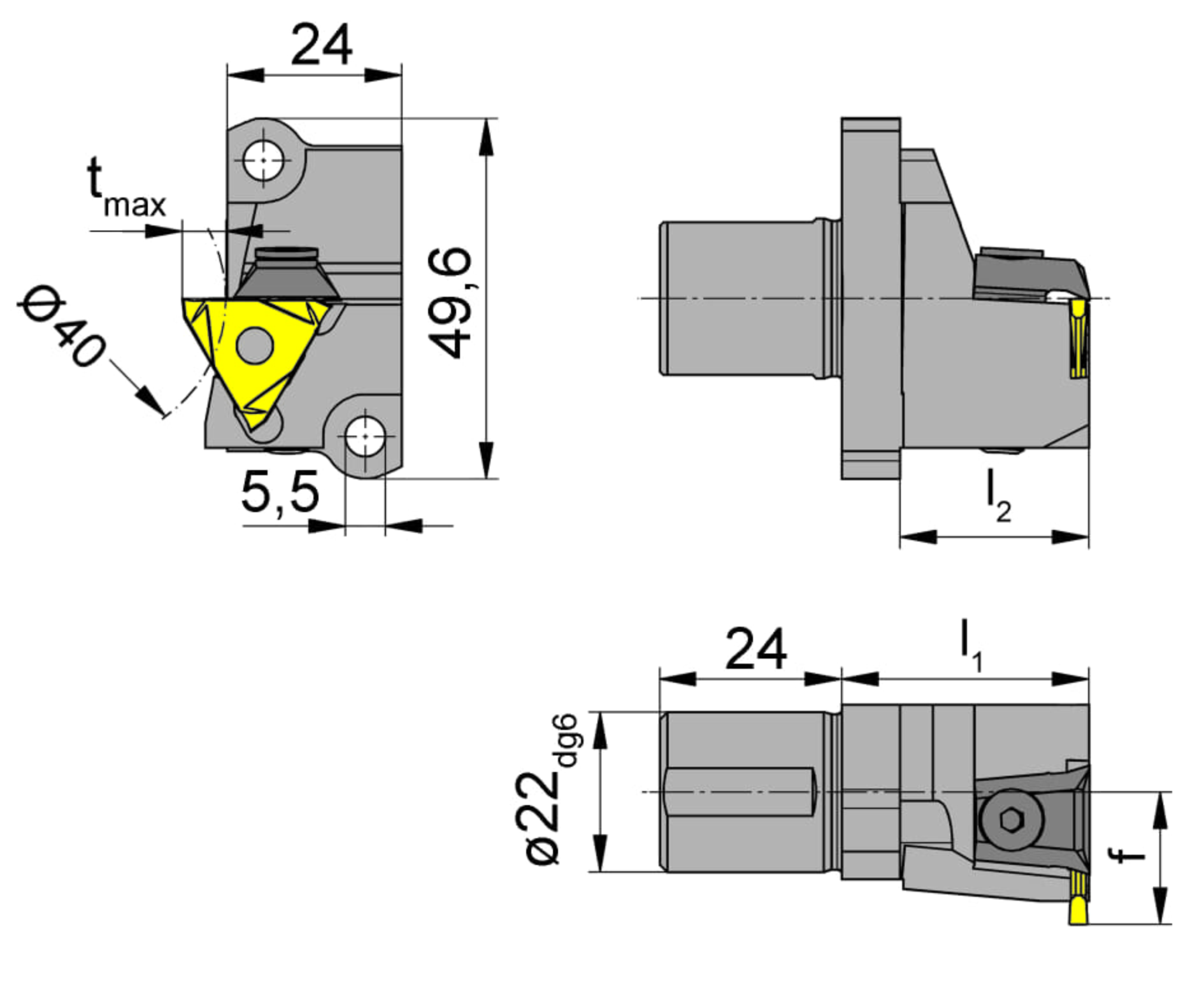

Adjustment dimension (f)
0.717 ˝
18.2 mm
Clamping range maximum (Spannbereich)
0.114 ˝
2.9 mm
Head length bottom without insert (l2)
1.024 ˝
26 mm
Maximum depth of groove (tmax)
0.236 ˝
6 mm
Length from bore (l1)
1.339 ˝
34 mm
| Downloads | |
|---|---|
| L369A0221802.DXF | Download |
| L369_A022_18_02.STP | Download |
| Download all files | |
