L368.1616.11.IK
Material number L368161611IK

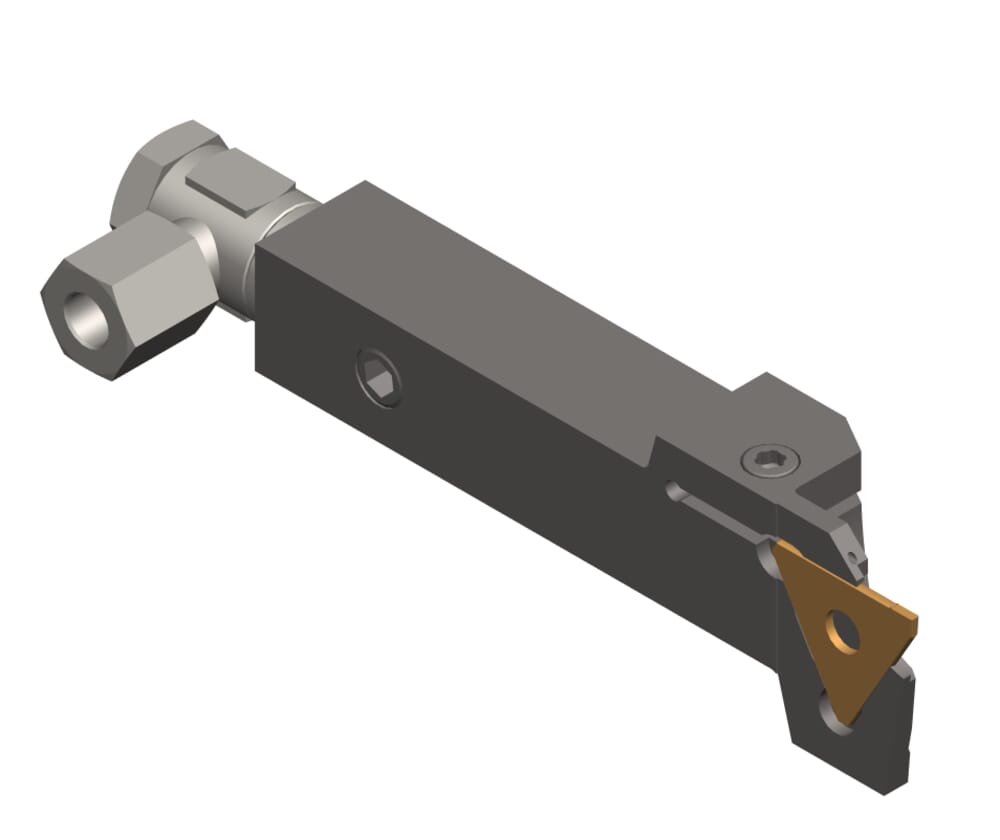

HORN Toolholder L368.1616.11.IK for Turning
Adjustment dimension locating face insert (f1)
0.051 ˝
1.3 mm
tool-application
static
machining-direction-sap
left
Adjustment dimension (formula) (f)
f1+a1
Katalog_CCTWS
31211N
Shank width (b)
0.63 ˝
16 mm
Head length (including cutting edge) (l2)
0.768 ˝
19.5 mm
Peak height (h1)
0.945 ˝
24 mm
Maximum depth of groove (tmax)
0.315 ˝
8 mm
length-overall-imp
3.74 ˝
95 mm
Shank height (h)
0.63 ˝
16 mm
Total length (including cutting insert) (l1)
3.74 ˝
95 mm
| Downloads | |
|---|---|
| L368161611IK_20210628_023856443.DXF | Download |
| L368161611IK_20240117_042955650.STP | Download |
| Download all files | |
